Pie15 Oval Cutting Fixtures 1D CLR - Digital Download
Product Overview:

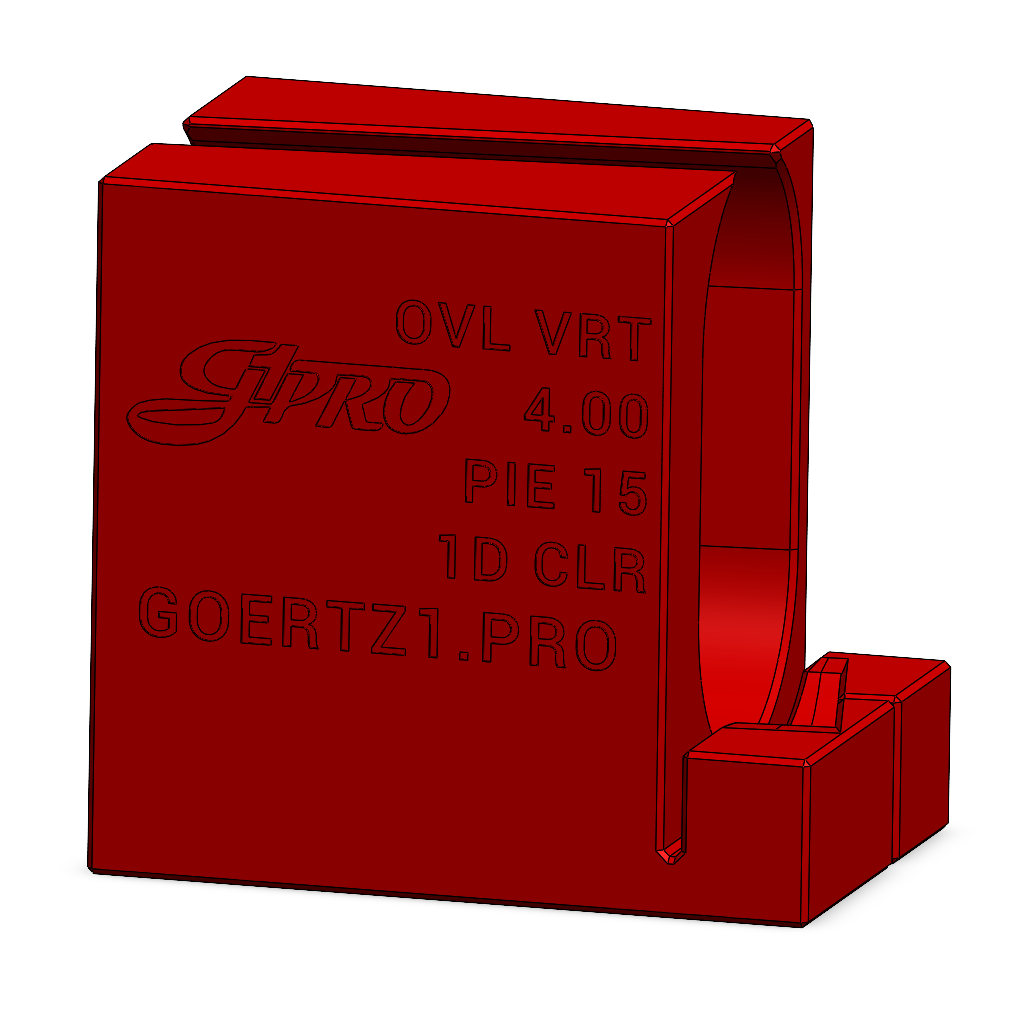

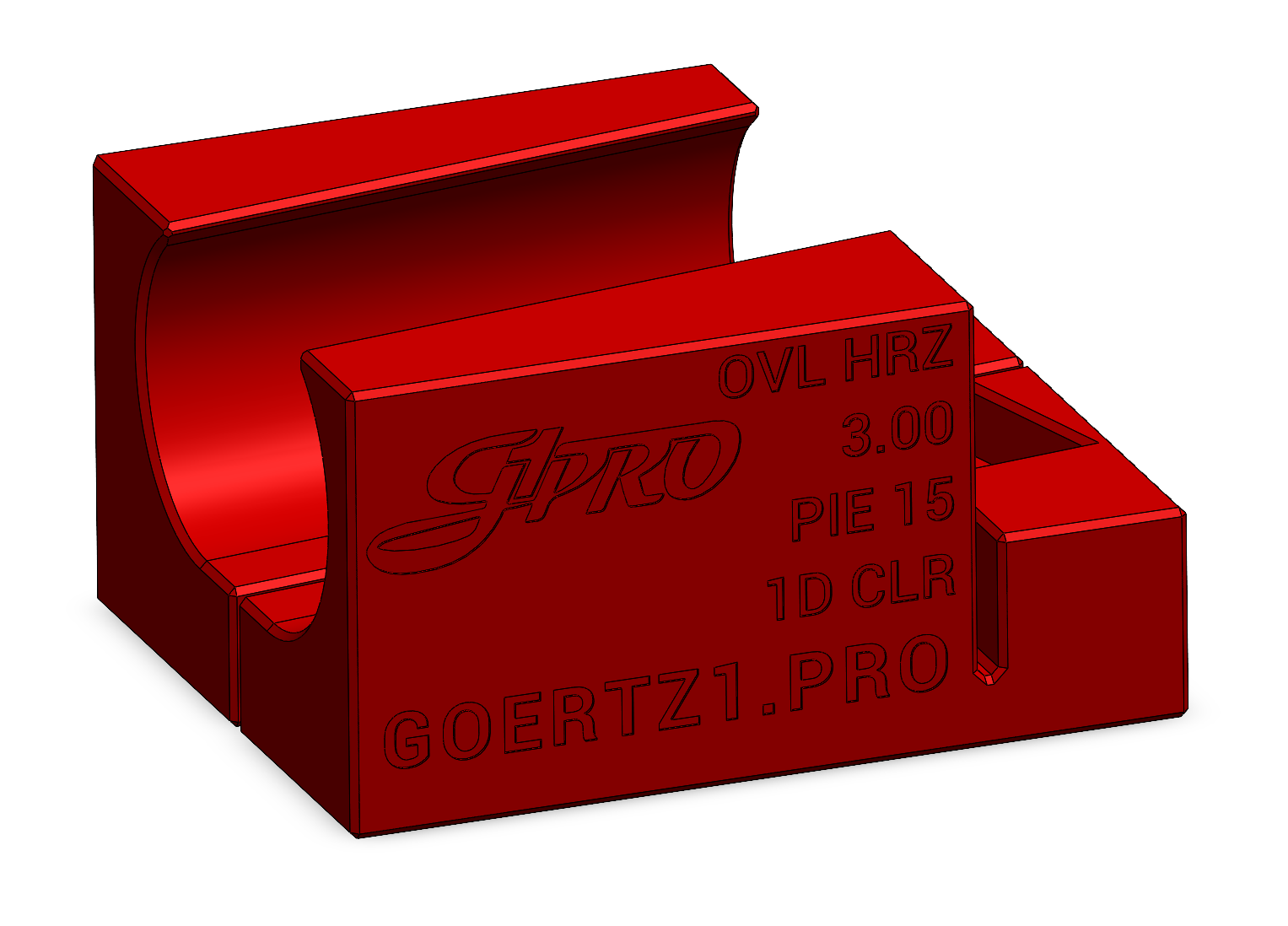

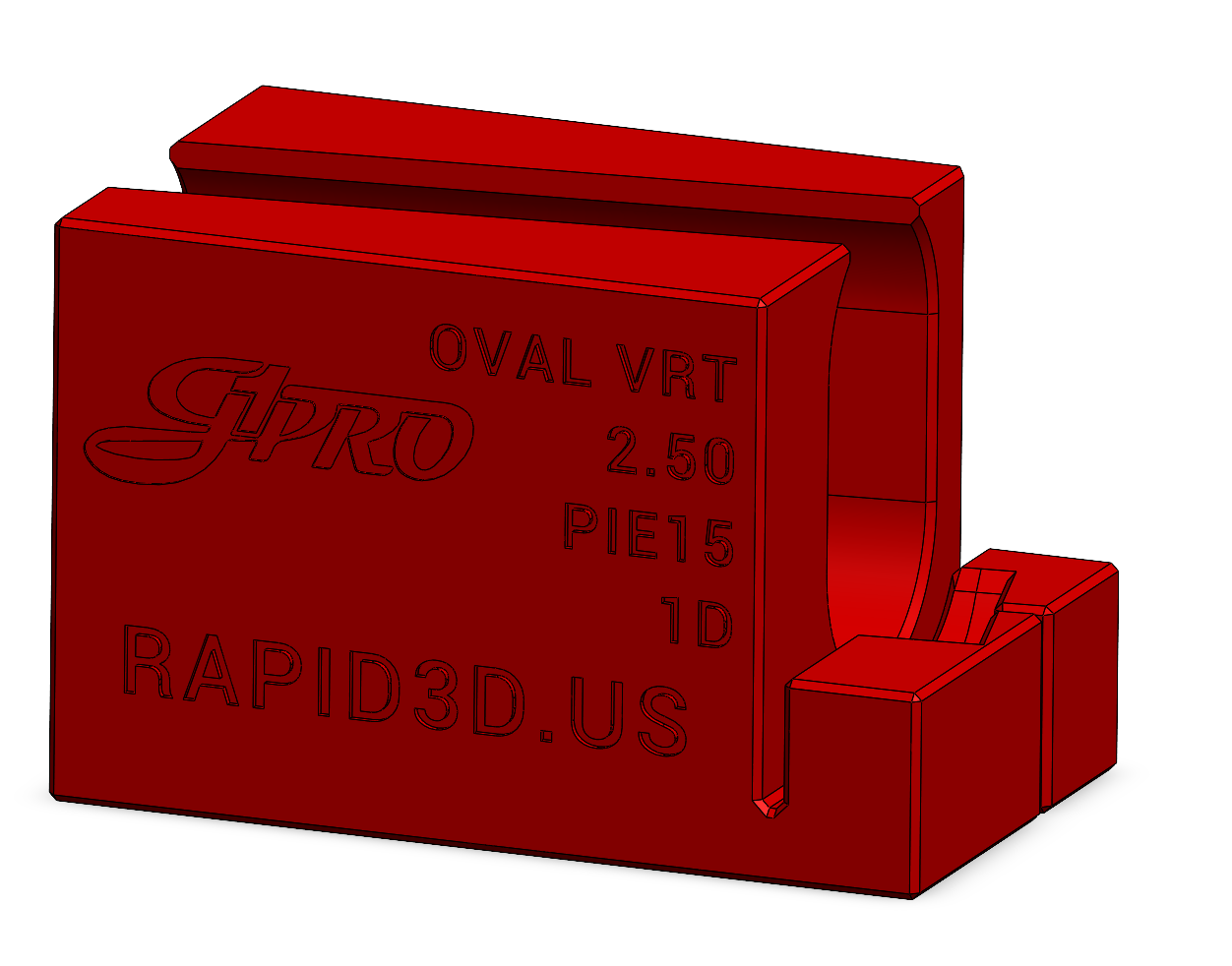

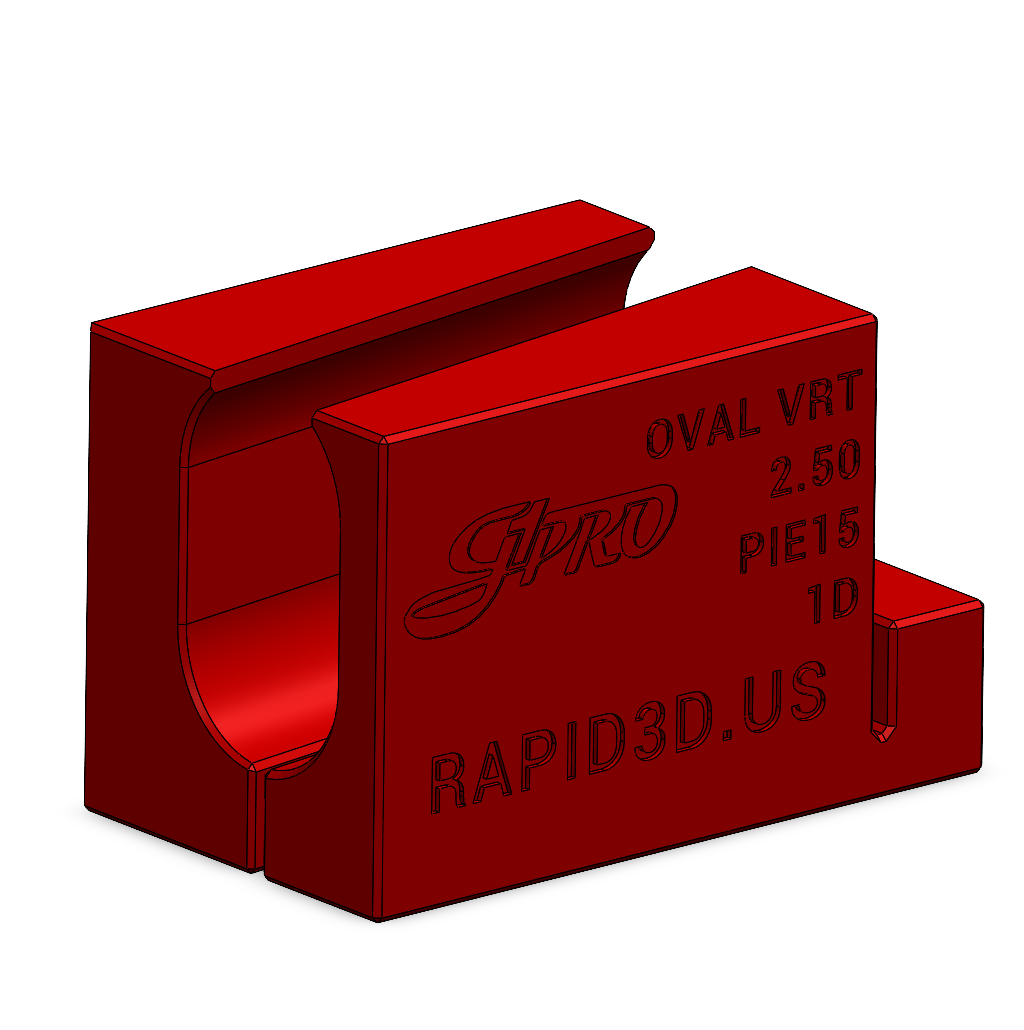

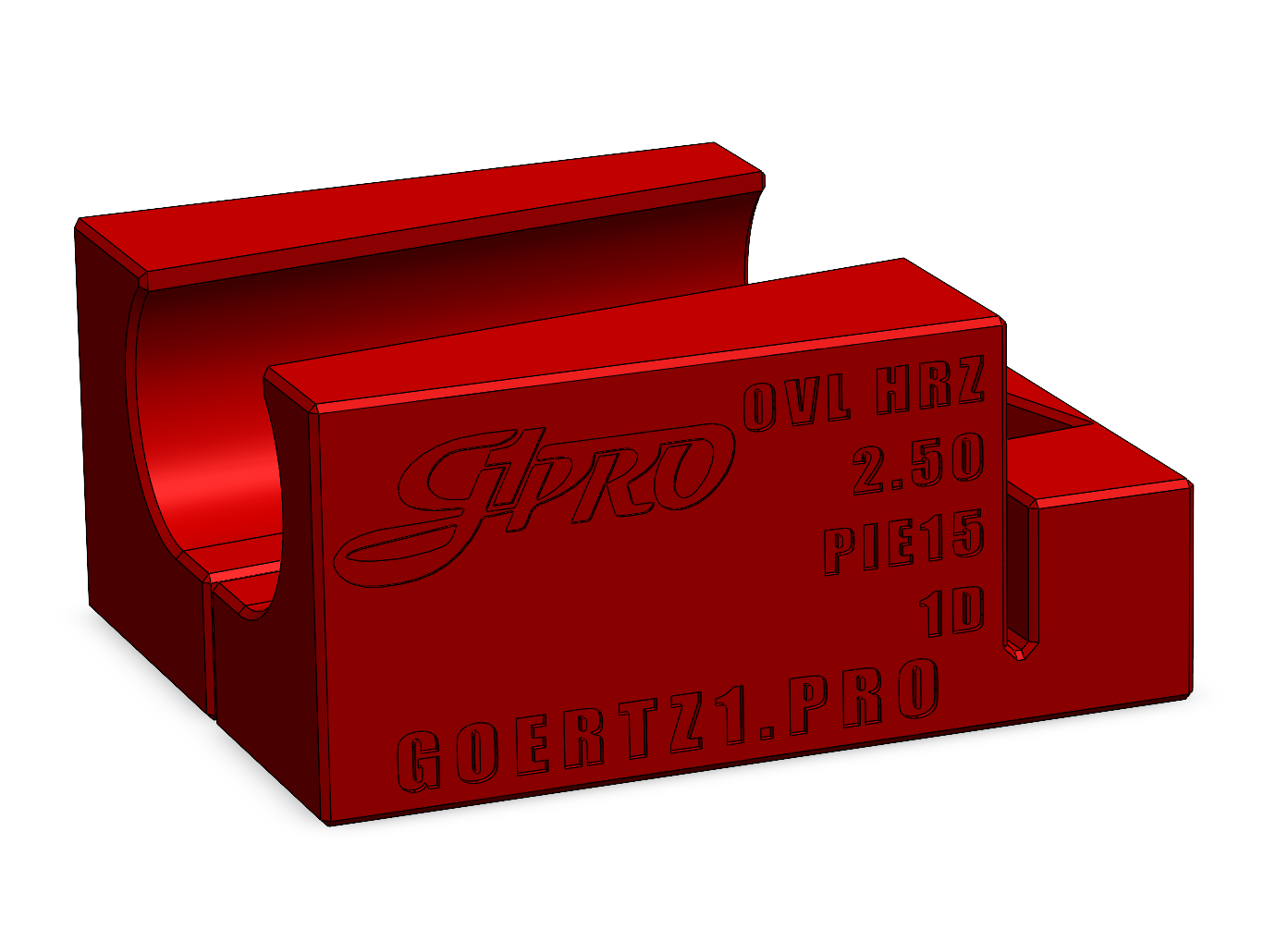

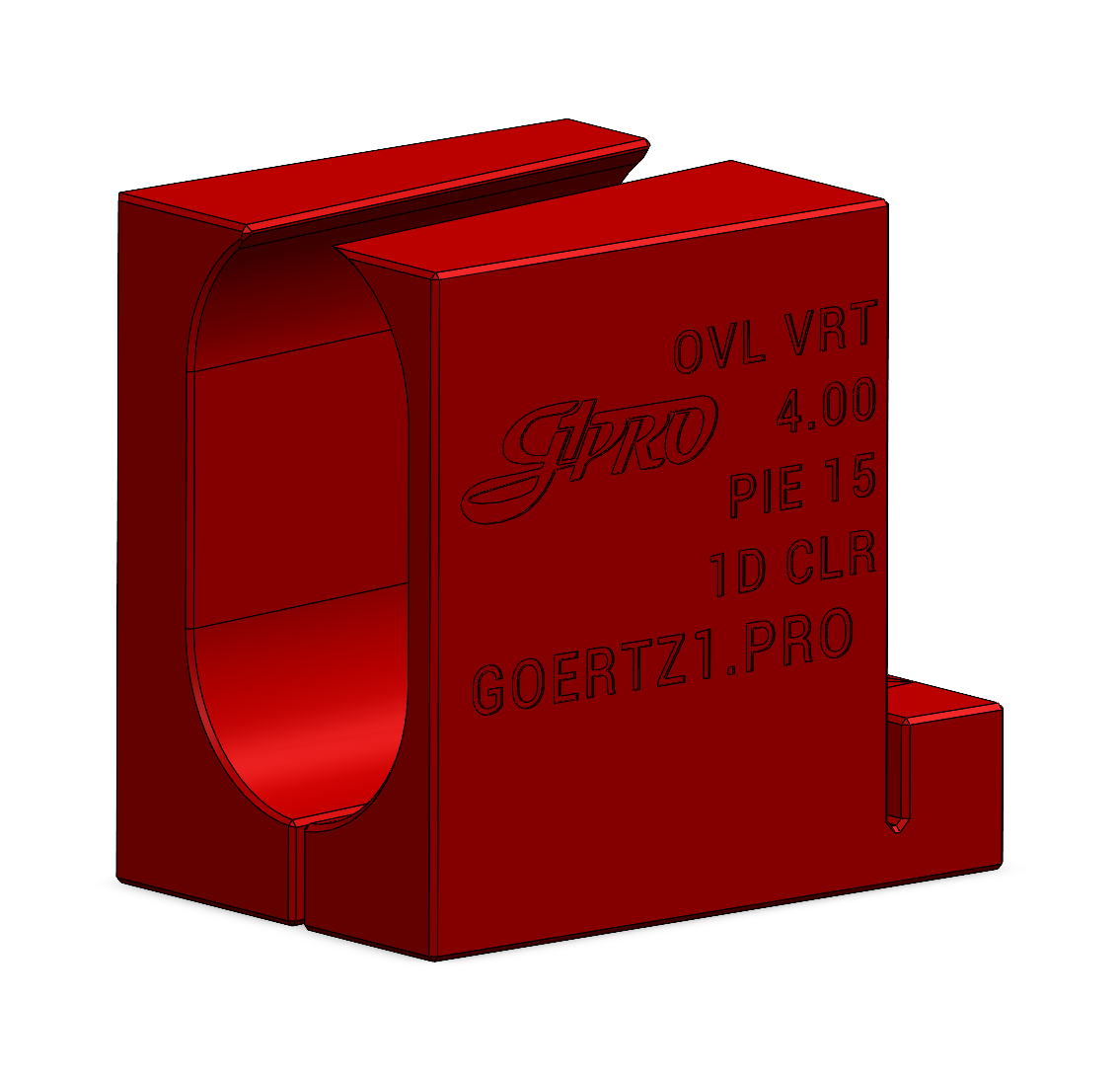

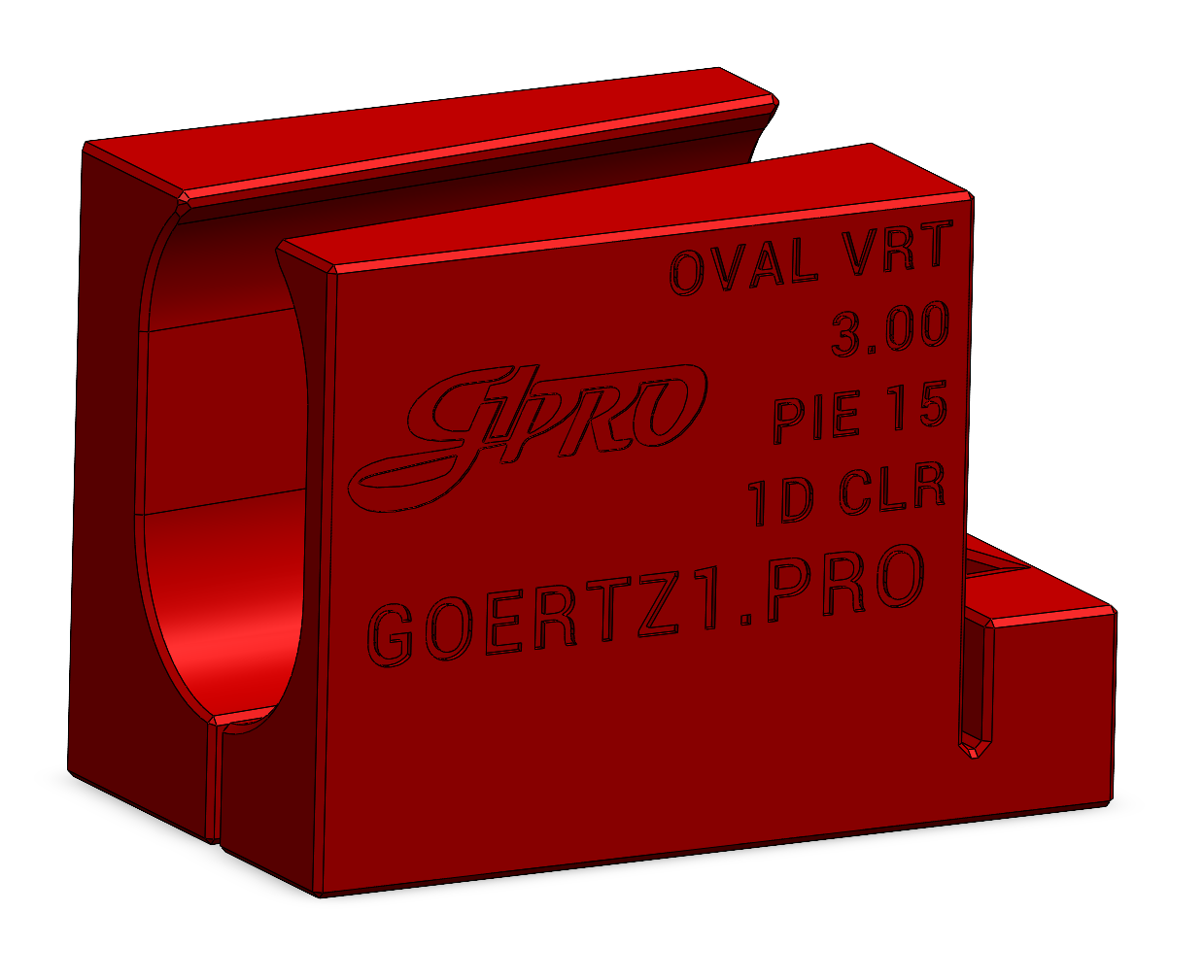

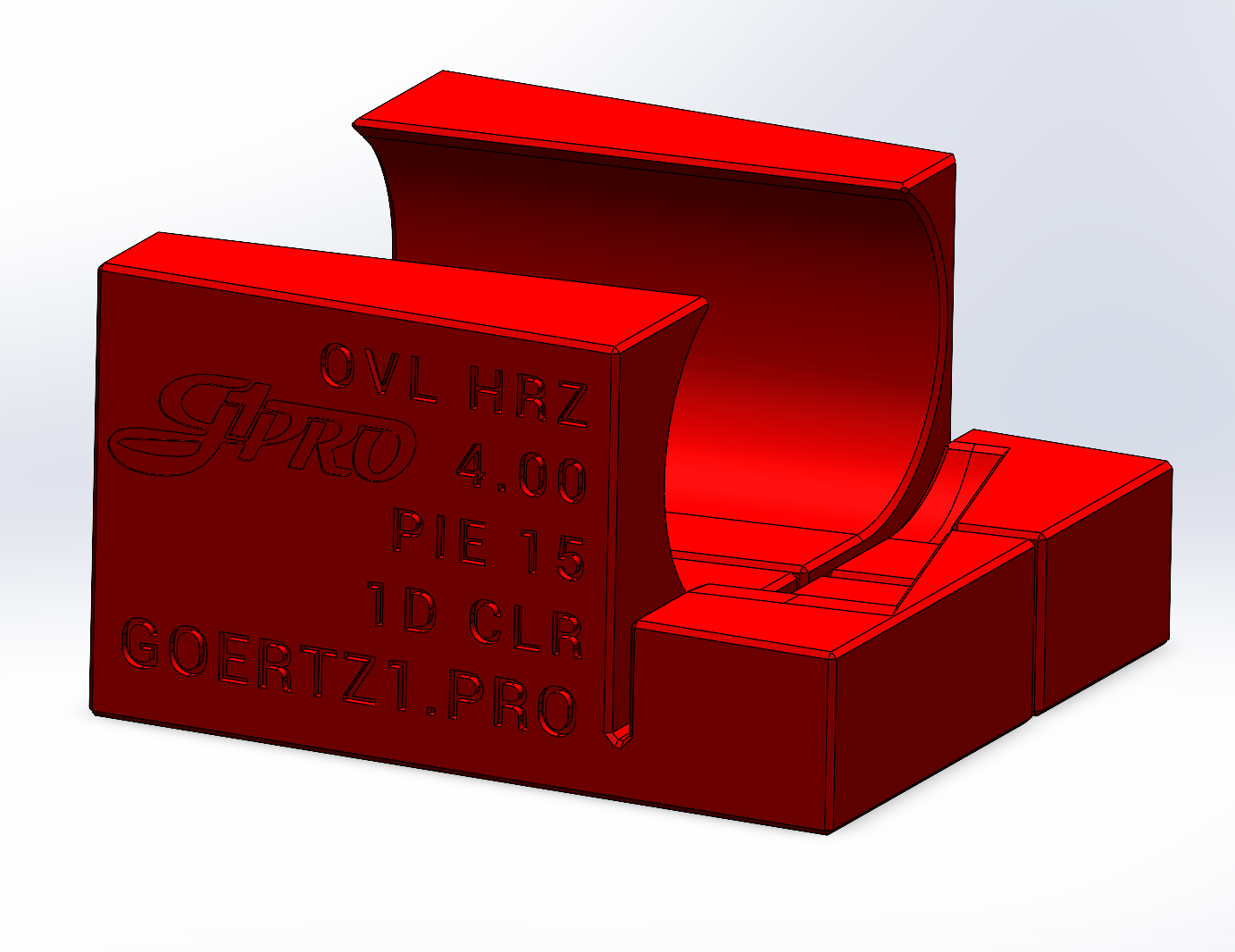

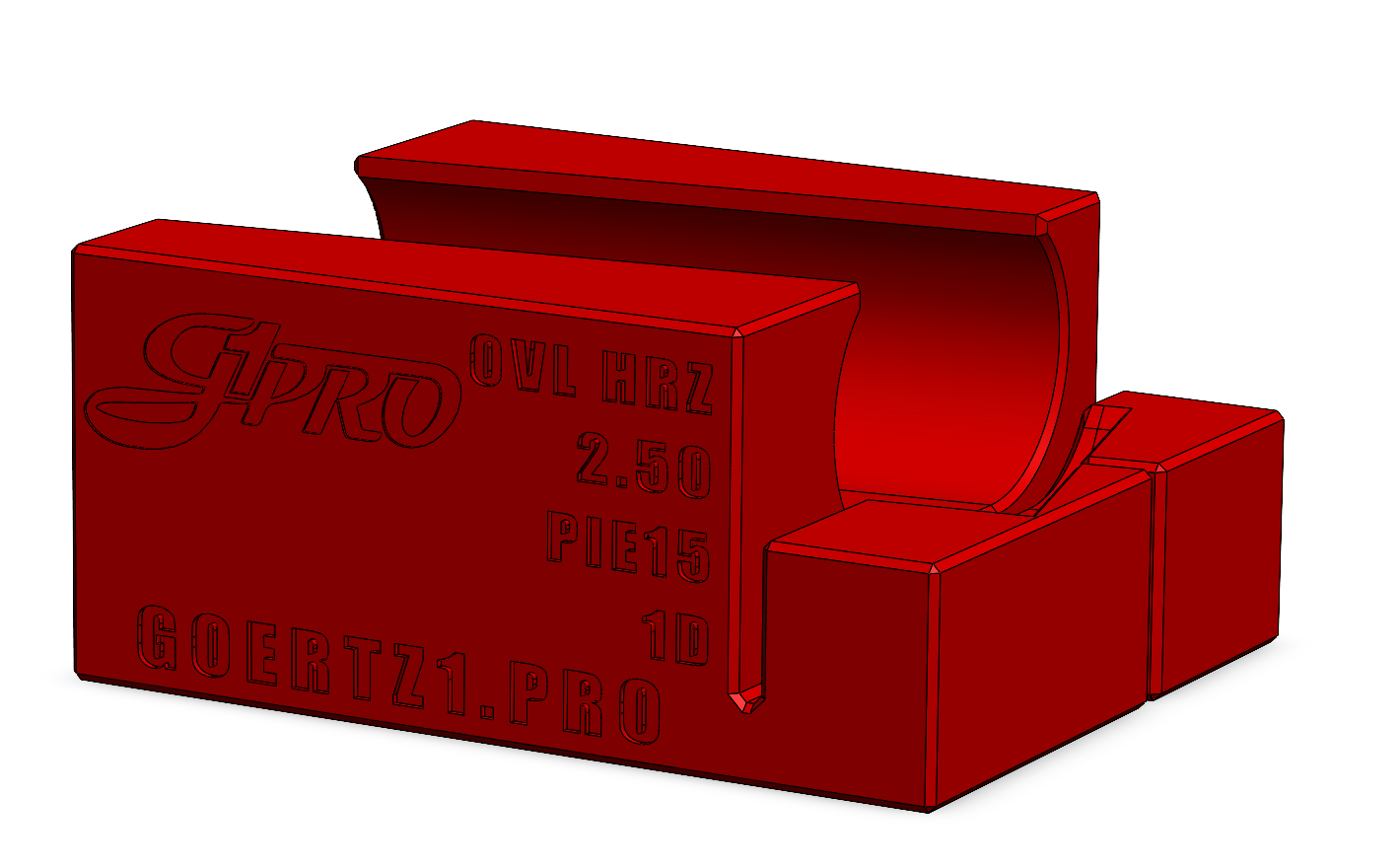

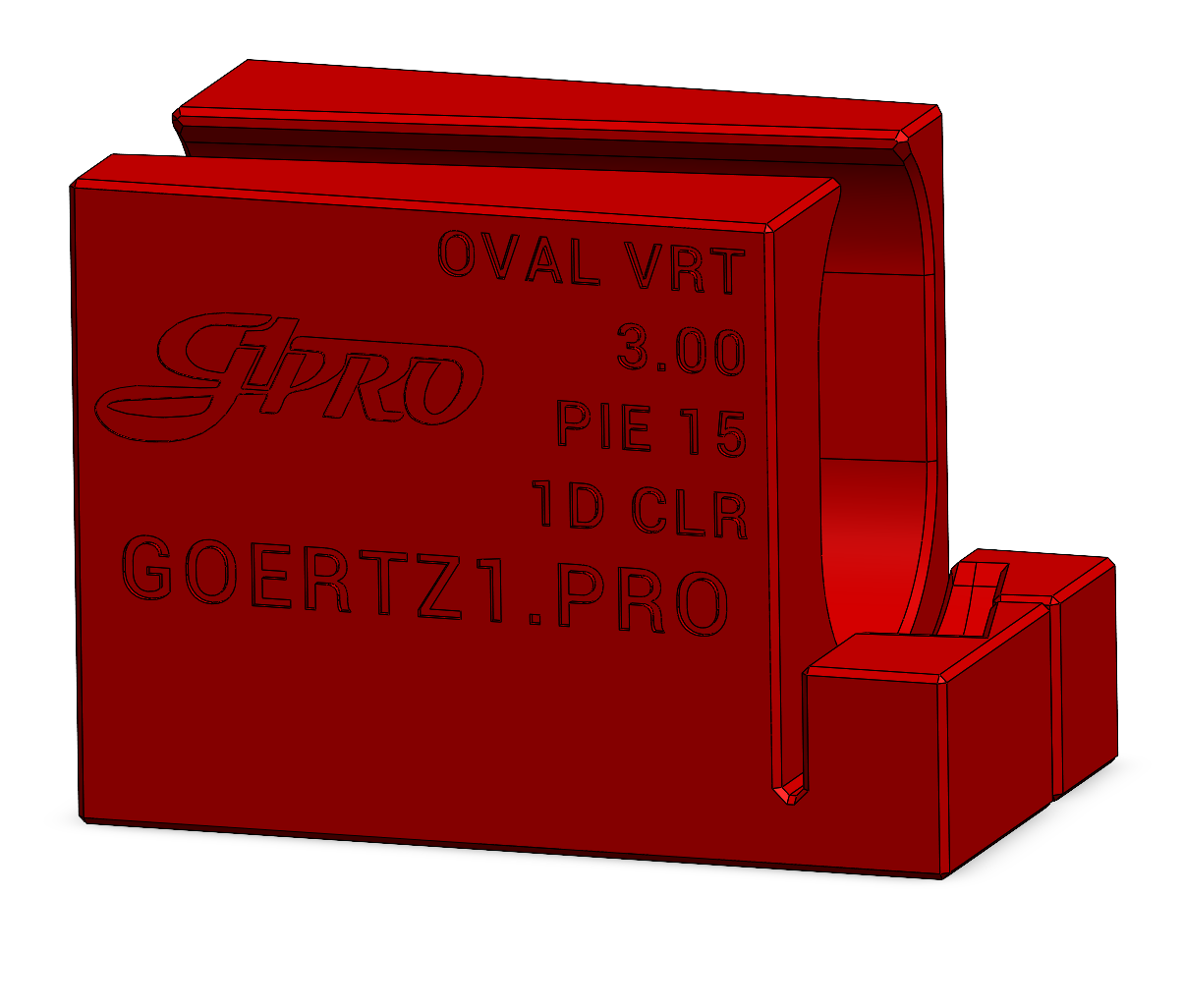

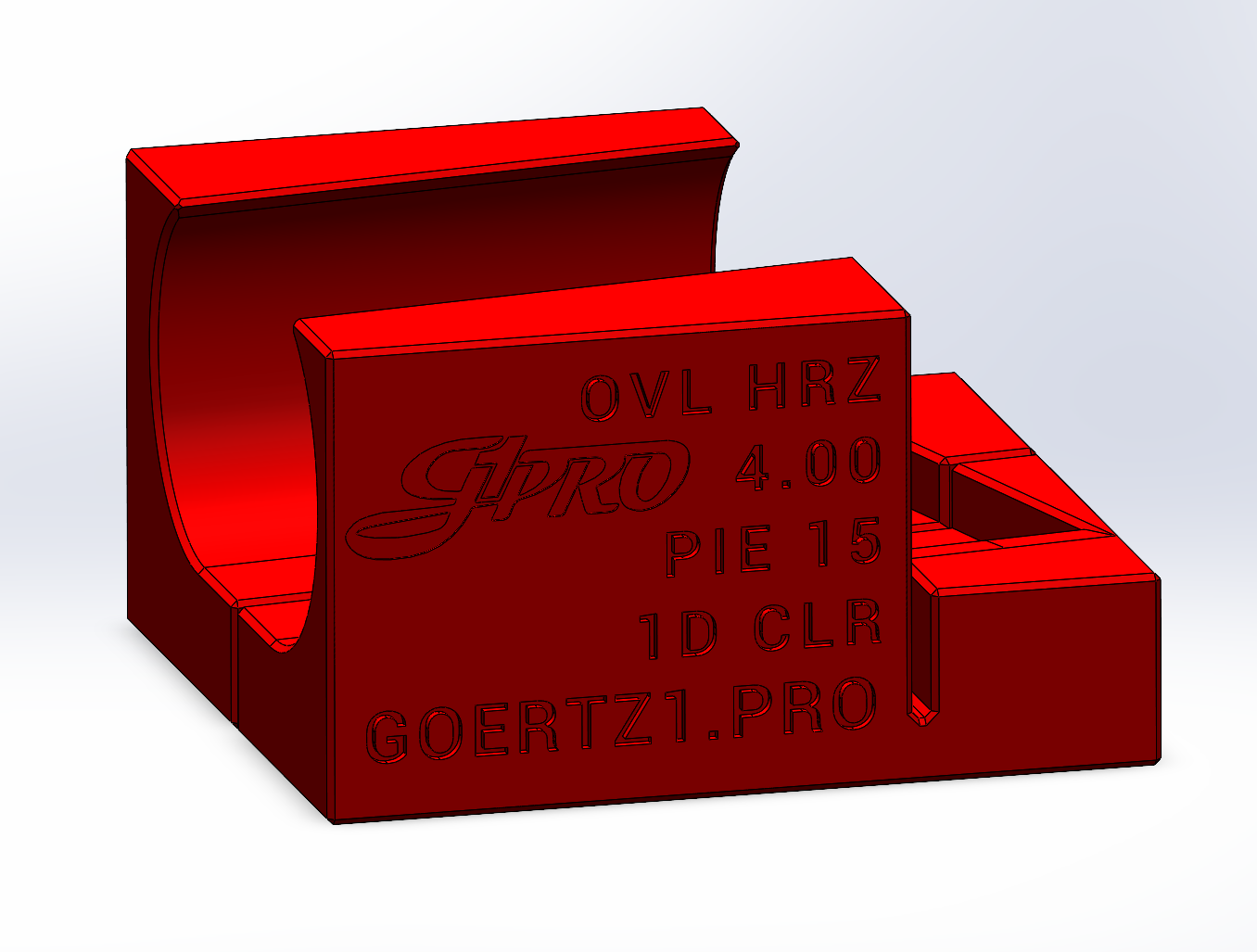

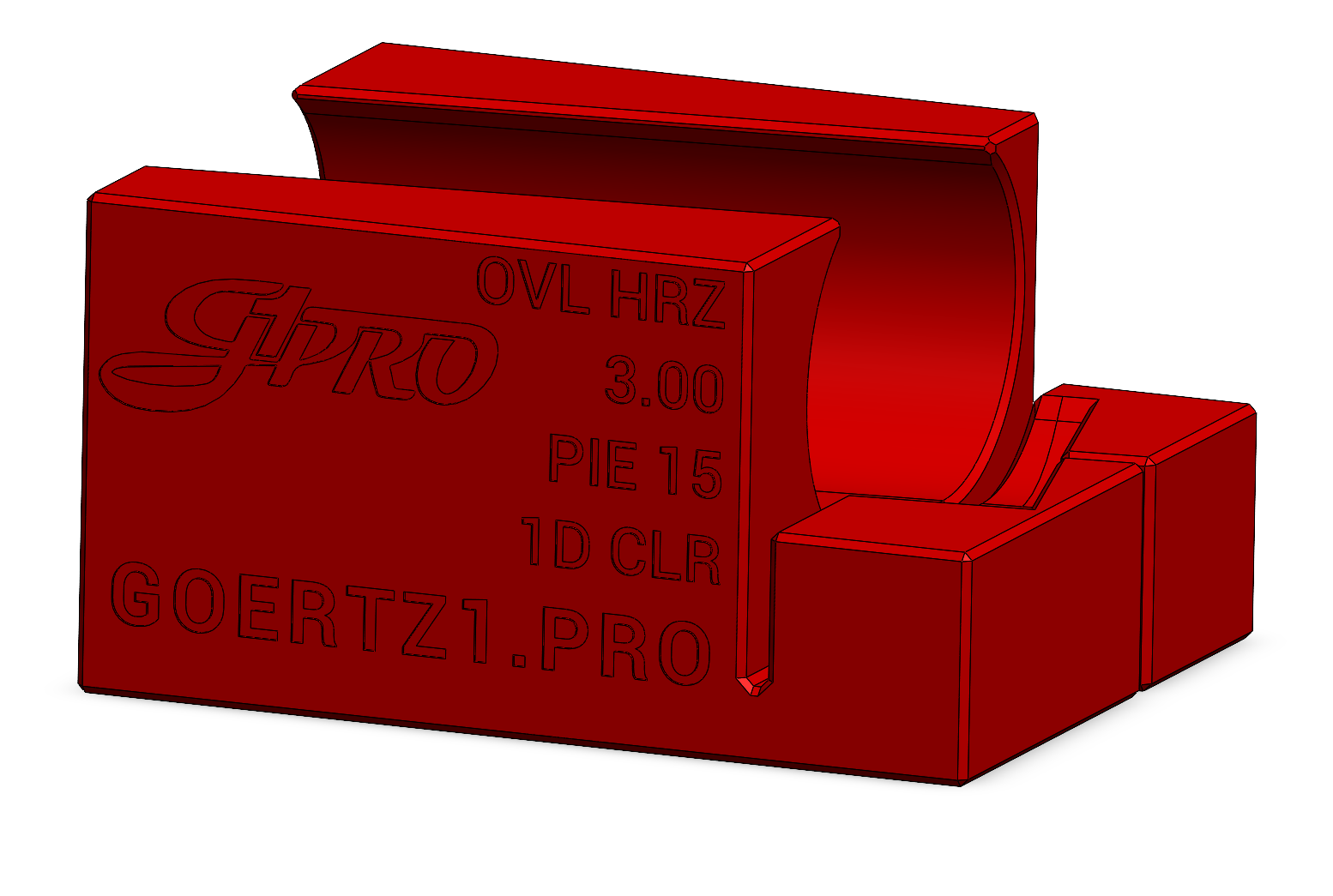

Our Pie15 Oval Cutting Fixtures are now available for 2.50", 3.00", and 4.00" tubing in both Horizontal and Vertical orientations. These fixtures are designed for fabricators seeking the highest levels of precision and consistency in their custom projects, making it easier than ever to achieve professional-grade results.
Included in this Digital Download:
- STL files for 2.50", 3.00", and 4.00" Oval Pie Cutting Fixtures.
- Configurations for both Horizontal and Vertical bends.
- Printable test pieces for accurate fitment validation.
- User guide for optimal printing and use.
Benefits:
Consistent & Precise Pie Cuts:
Ensure accurate pie cuts every time, reducing errors and material waste in fabrication projects. This design guarantees uniformity across all cuts, which is essential for achieving seamless transitions in your builds.
Save Time & Reduce Material Waste:
Achieve precise cuts on the first try, minimizing wasted material and avoiding time-consuming adjustments. This efficiency allows you to complete projects faster and with fewer resources.
Improve Fit & Finish:
Achieve perfect fitment and seamless transitions in your exhaust or manifold projects. The consistent, accurate cuts provided by the fixtures ensure a professional-grade finish, enhancing both the performance and aesthetics of your work.
Enhanced Stability:
Designed to provide stability during cutting, these fixtures prevent material slippage, ensuring clean, precise cuts every time. This stability is crucial for maintaining accuracy, especially in complex or delicate applications.
Vibration Reduction:
The fixture design helps reduce vibrations during the cutting process, increasing blade life and ensuring smoother, cleaner cuts without chatter. This results in a superior finish and reduces wear and tear on your equipment.
Micro-Cutting Capability:
Make precise, small cuts even when working with minimal material. The optimized design of these fixtures allows for accurate micro-cutting, which is especially useful for detailed or intricate projects where precision is paramount.
How It Works:
-
Download & Print: After purchase, download the STL files and print the fixtures using your 3D printer.
-
Setup: Align your tubing within the fixture and secure it in place.
-
Cut: Use your preferred cutting method (bandsaw, chopsaw, etc.) to create consistent and accurate pie cuts.
-

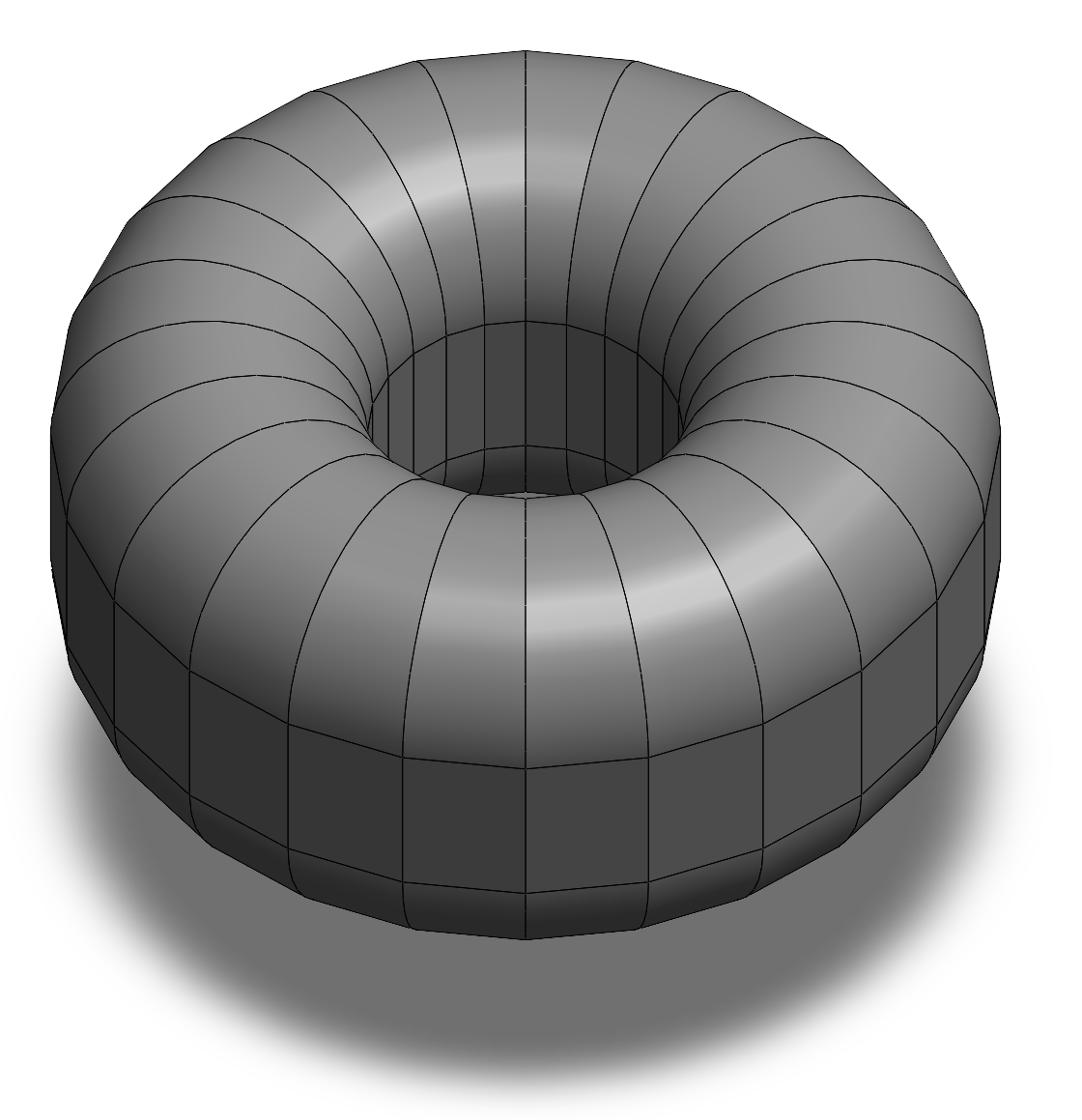

Assemble: Use the pie cuts to create tight-radius bends and complex assemblies with ease.
Product Specifications:
-
Sizes Included: 2.50", 3.00", and 4.00"
-
Bend Types: Horizontal and Vertical configurations
-

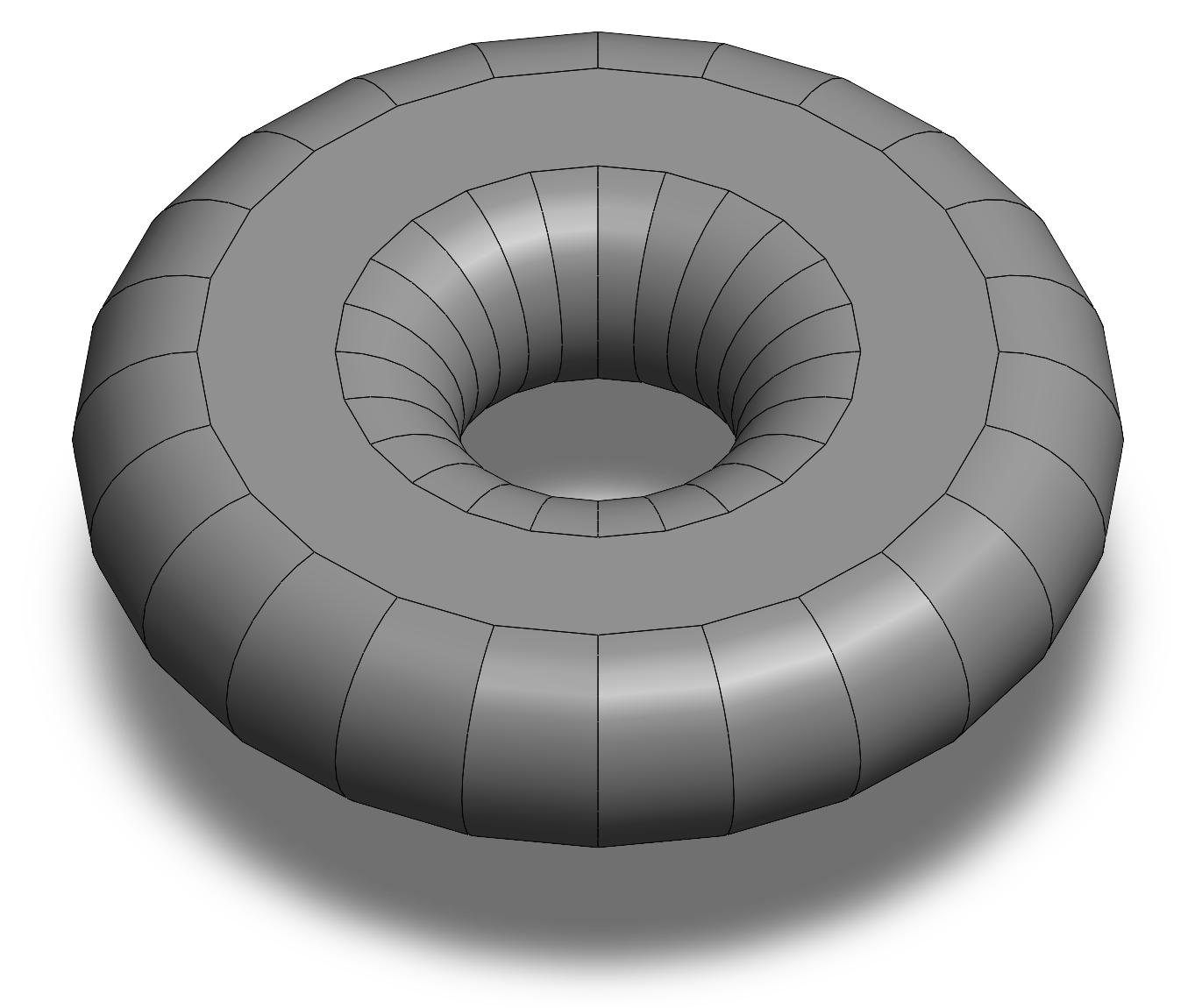

1D Center Line Radius: Engineered for optimal flow characteristics and minimal distortion.
Pricing:
- Single Size (2.50", 3.00", or 4.00" in one orientation): $20.00 each
- Complete Set (All sizes in both orientations): $75.00
Compatibility: These STL files are optimized for use with FDM 3D printers and can be printed using PLA, ABS, PETG, or any other material suitable for your workshop environment.
Download Instructions: After checkout, you will receive a download link via email. Make sure to save your files in a secure location. For any issues with the download or usage, feel free to contact us for support.
Important Notes:
- This is a digital product only. No physical items will be shipped.
- Ensure proper 3D printer calibration for best results.
- These files are for personal use only and cannot be resold or redistributed.
Ready to elevate your fabrication projects? Download your Pie15 Oval Cutting Fixtures today and experience the precision and efficiency of professional-grade tooling!
