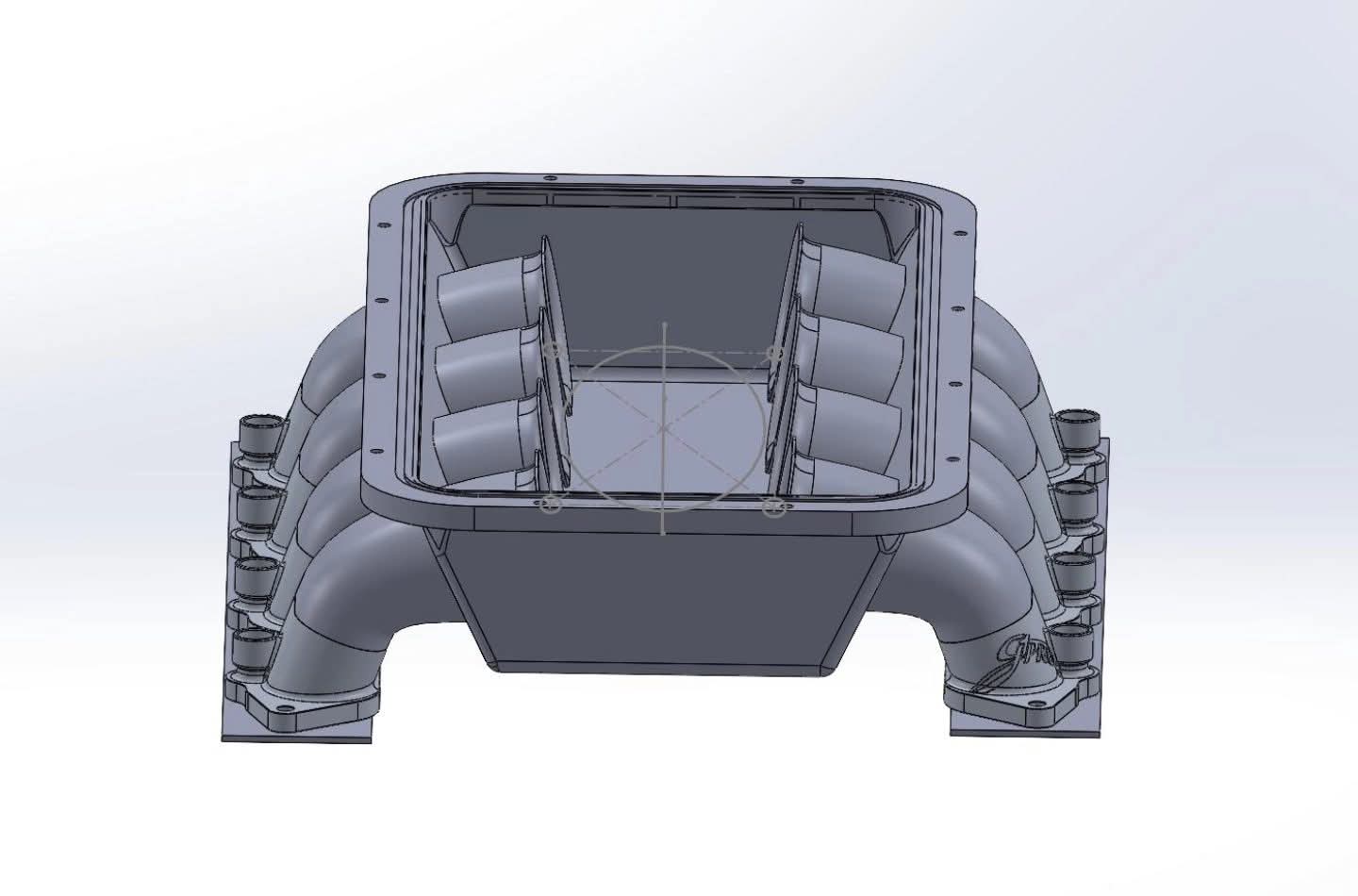

Coyote Mid Ram Lower Plenum Intake Manifold

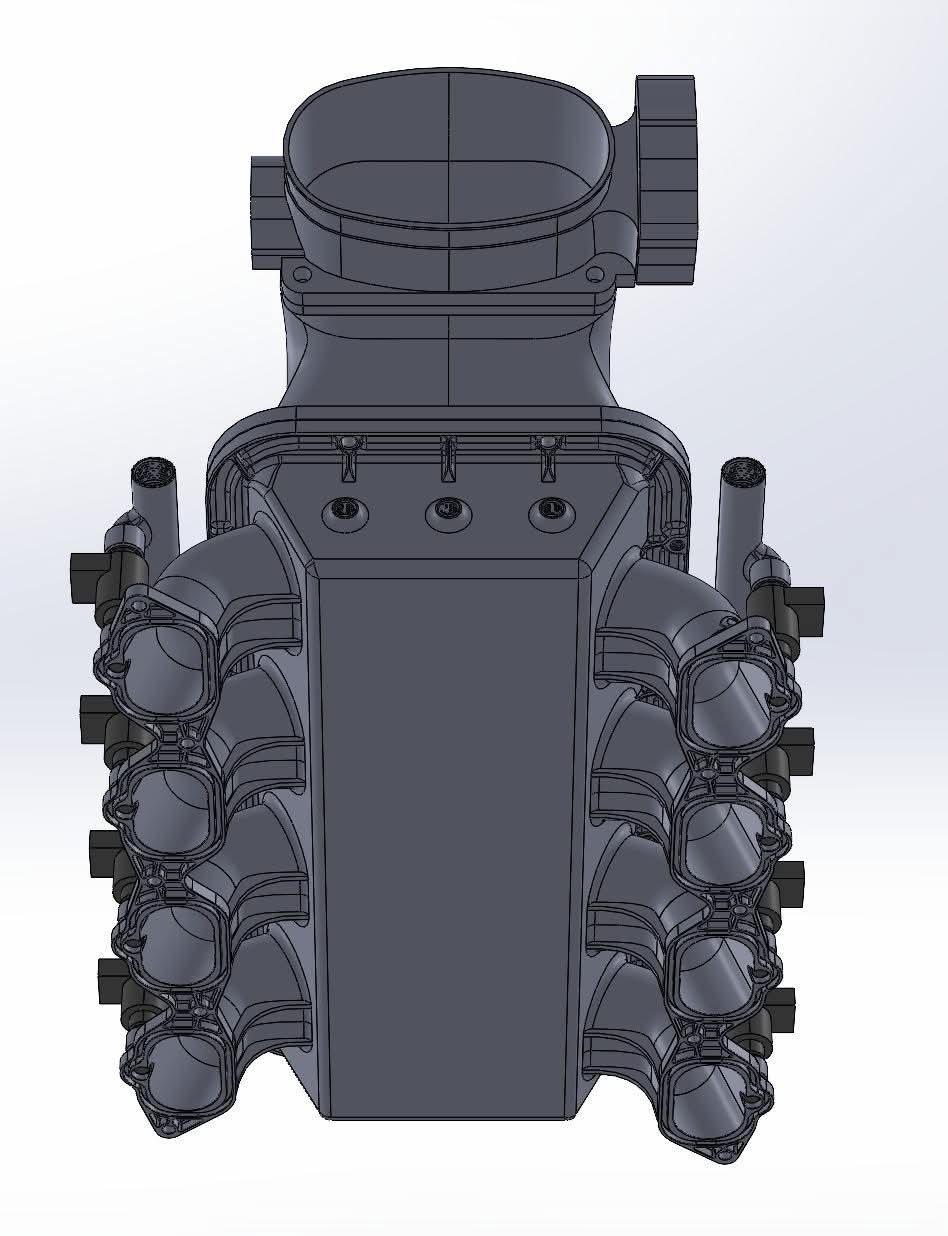

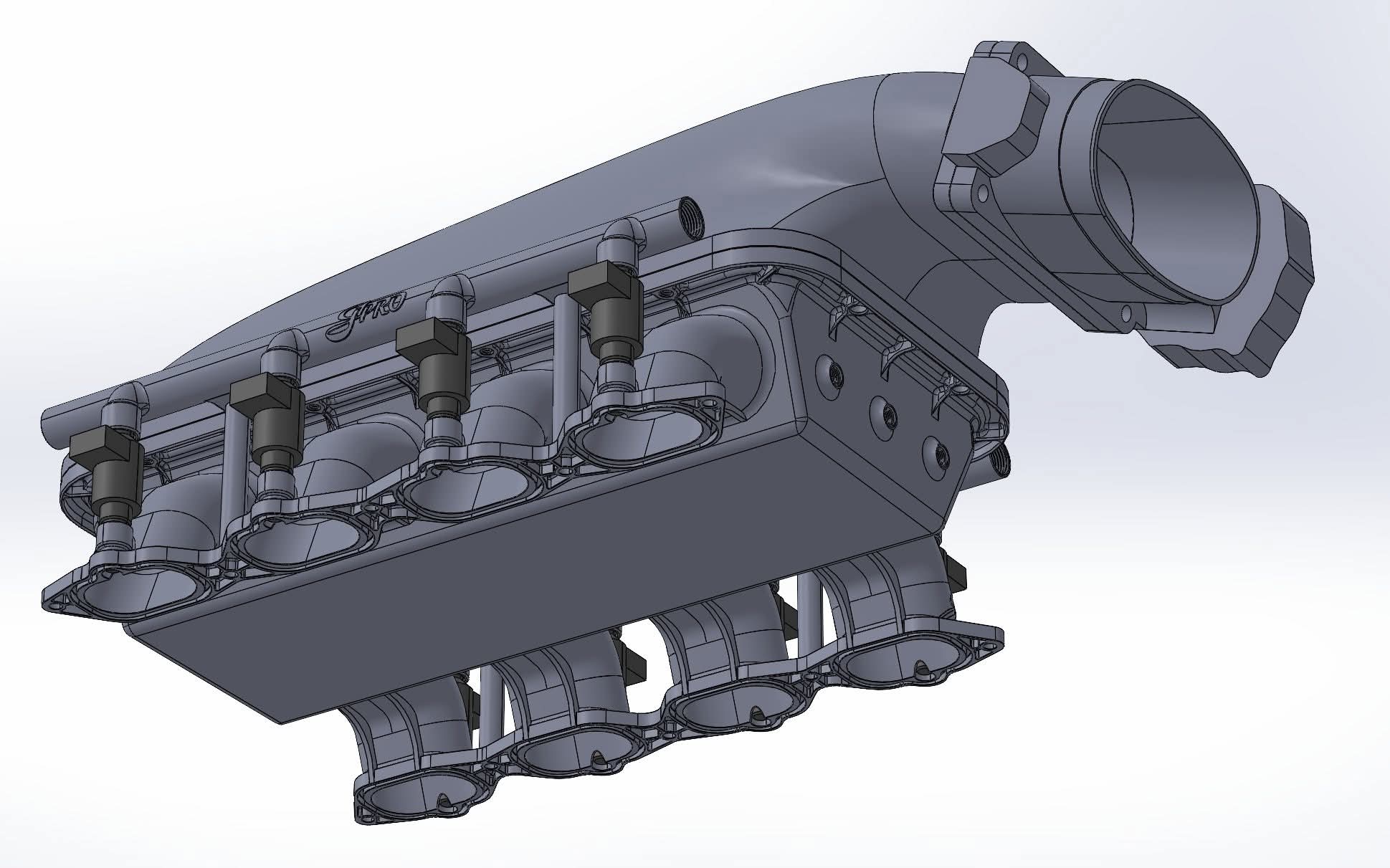

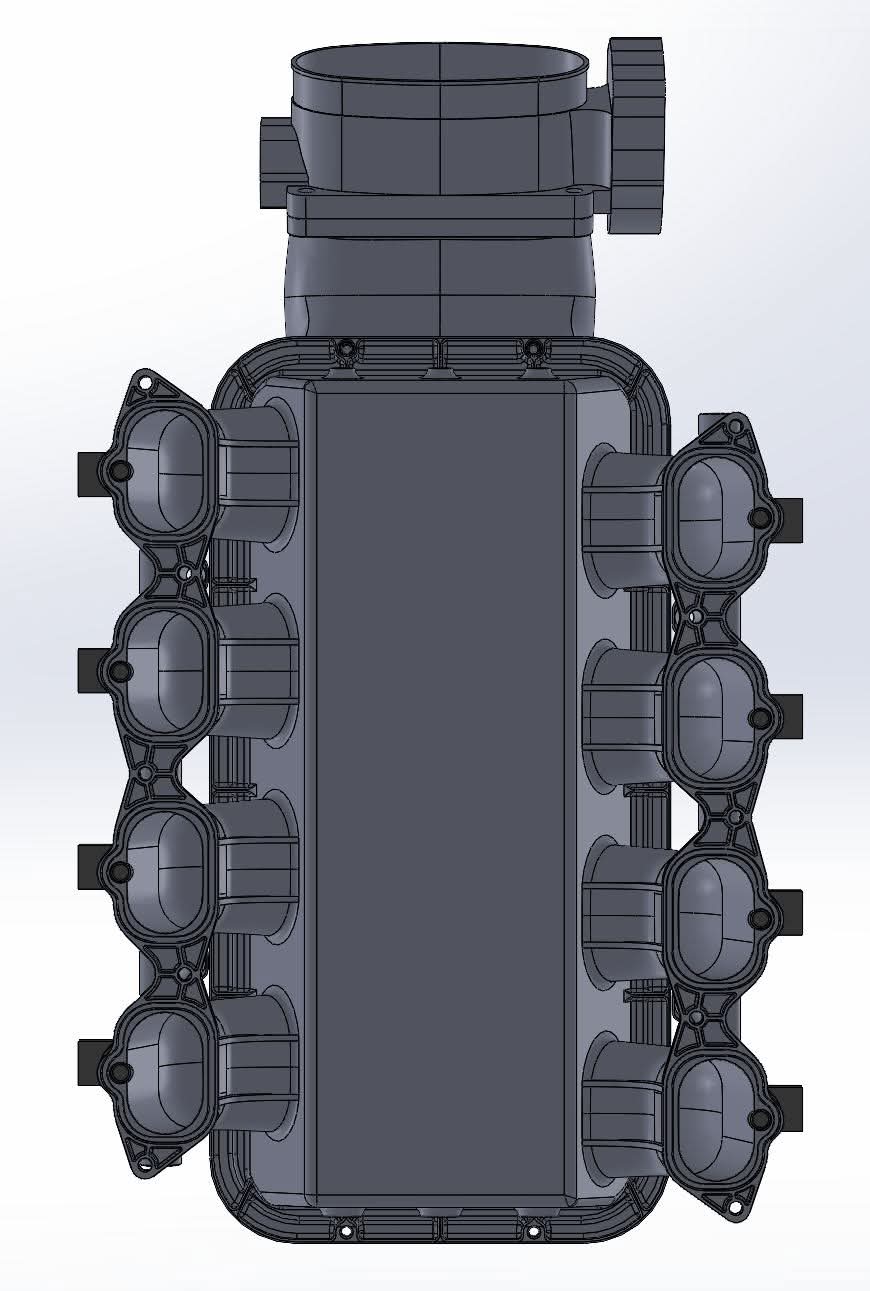

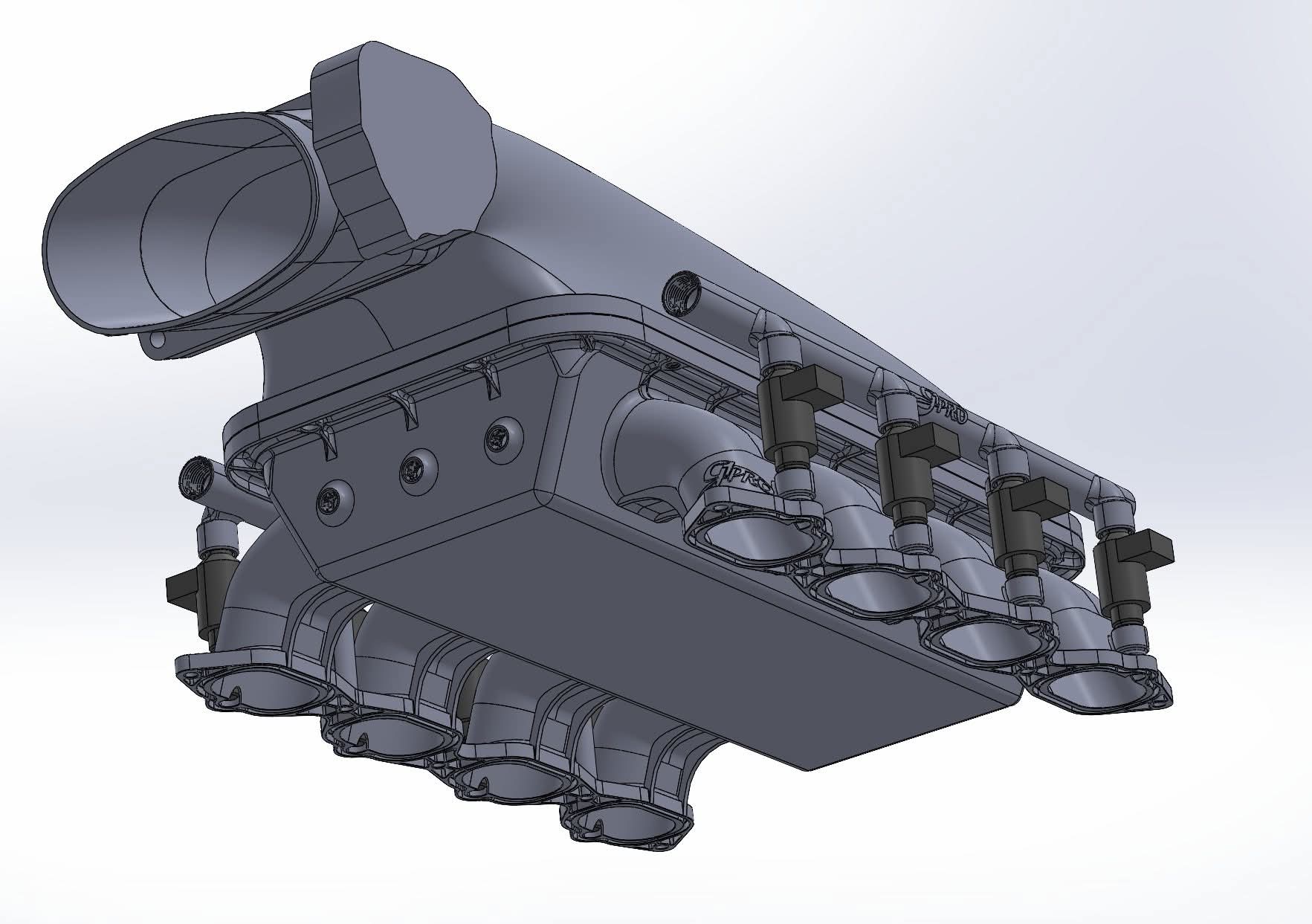

Coyote Printed Mid Ram Intake Manifold (Holley High Ram Plenum Flange)



Compatible With All A2W Cores • Fuel Rails Included • Black Friday Release



The next evolution of Coyote intake performance is here.

Designed around a Holley High Ram plenum flange, this fully printed aluminum Mid Ram manifold is engineered for maximum strength, airflow, and under-hood clearance — while remaining perfectly compatible with air-to-water intercooler systems.



This intake delivers OEM-level fitment with motorsport-level performance.





---



Key Features



• 100% Aluminum Metal-Printed Construction



Direct Metal Laser Sintering (DMLS) provides extreme rigidity, precise geometry, and perfect repeatability with no welding distortion.



• Accepts All A2W Cores



Fully compatible with:



G1Pro Ultra Low A2W Core



Tick Ultra Low Core



Any Holley High Ram–style A2W intercooler core

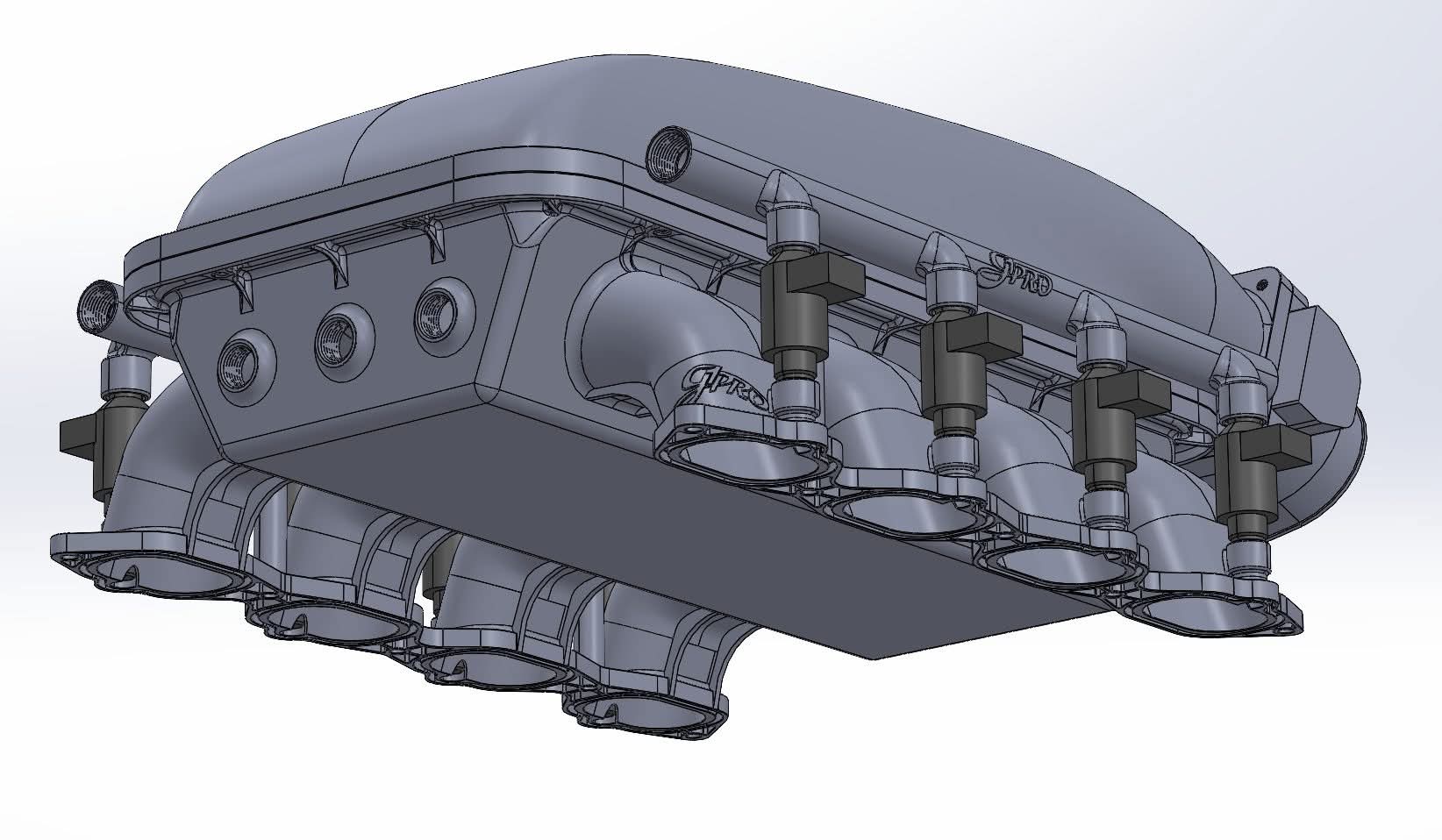

• Fuel Rails Included



Designed specifically for this manifold:



Full-length rails



Perfect injector alignment



High-flow cross-section





• Optimized Runner + Plenum Design



5-inch runners with 25% taper for improved velocity



4-inch lower plenum height from cylinder head surface



Engineered to fit like an OEM Boss 302 manifold when paired with ultra-low A2W hardware





• OEM-Compatible Sealing



Designed to work with standard Ford Coyote:



Manifold-to-head seals



Manifold-to-throttle-body seals



Drop-in simplicity







---



A2W Core Upgrade – Now Triple Pass



All G1Pro air-to-water cores have been upgraded from dual-pass to triple-pass water routing for even greater cooling efficiency under extreme boost.



Available as:



Ultra Low 3-inch Triple Pass Core



Optional integration with G1Pro Ultra Low Lid for full OEM-style hood clearance







---



Pricing



• Intake Only:



$2,800 USD

(No A2W core included)



• Intake + Ultra Low 3-inch Triple Pass A2W Core:



$4,150 USD



Wholesale pricing available for shops — contact us directly.





---



Fitment



2011–2024 Ford Coyote engines



S197, S550, S650 platforms



Any Holley High Ram–pattern plenum or lid



Compatible with G1Pro custom lids and printed throttle-body snouts







---



Lead Time



14–18 days from order to shipment.

Each manifold is individually printed, assembled, and QC-tested.





---



Included in the Box



Printed aluminum Mid Ram lower



Fuel rails



Stainless hardware (titanium available as an upgrade)



O-rings and seals



Installation guide







---



Build It Your Way



Throttle body options, logos, and customization are available.

Shops and wholesale accounts — message us for special pricing and branded versions.





---



Ready to transform your Coyote with the most advanced printed intake ever offered?

Add to Cart or DM us for custom configurations.

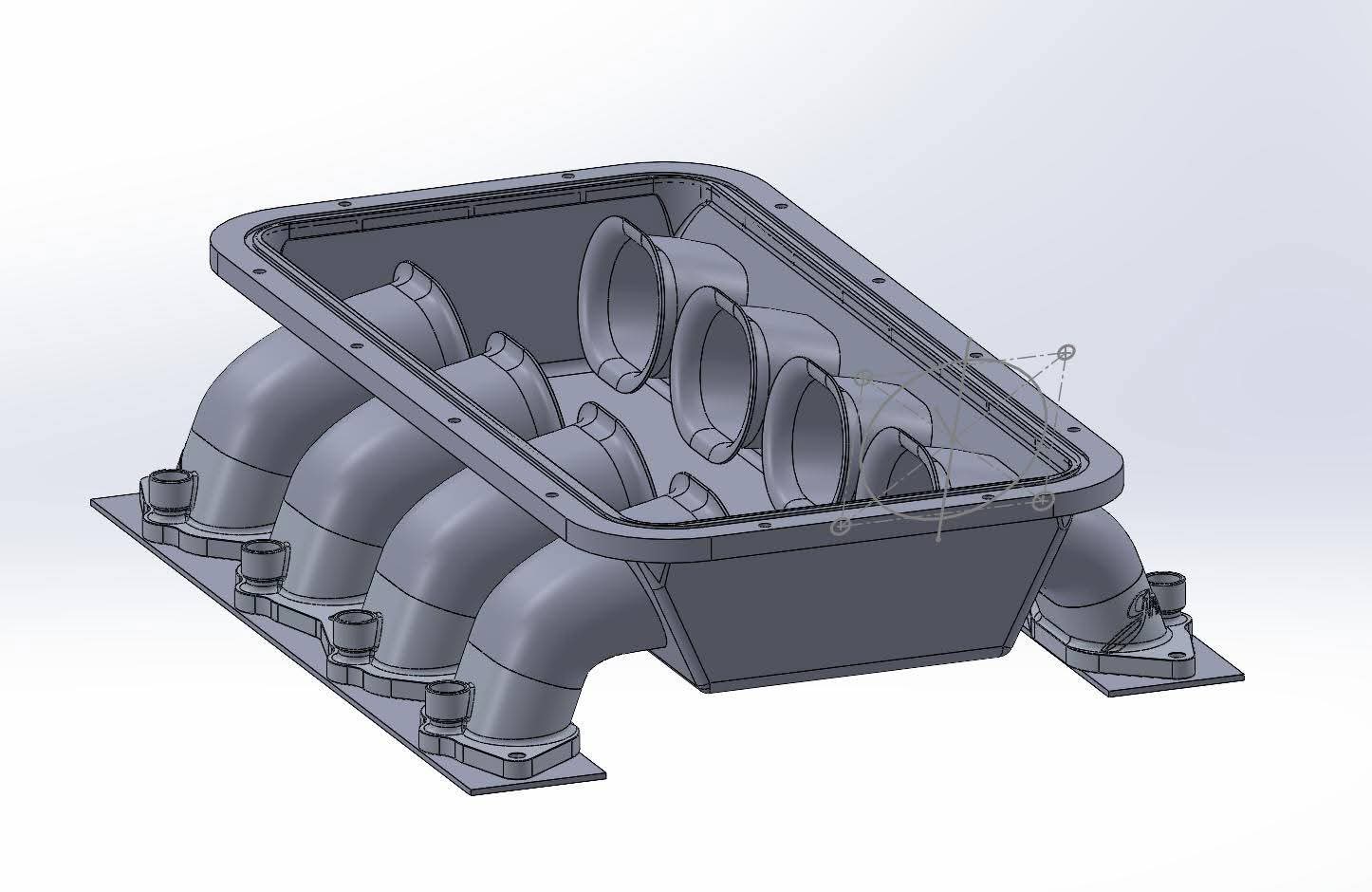

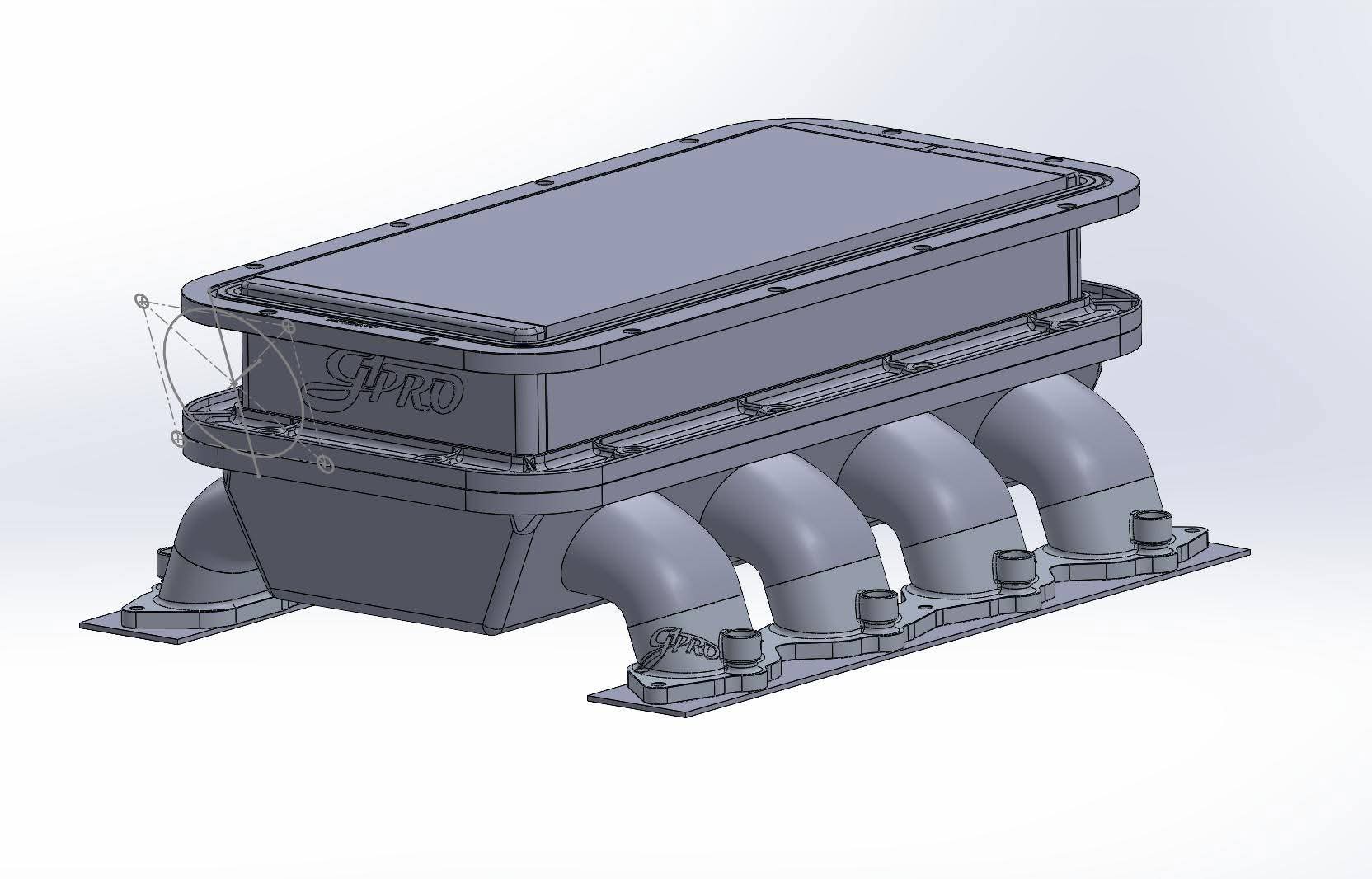

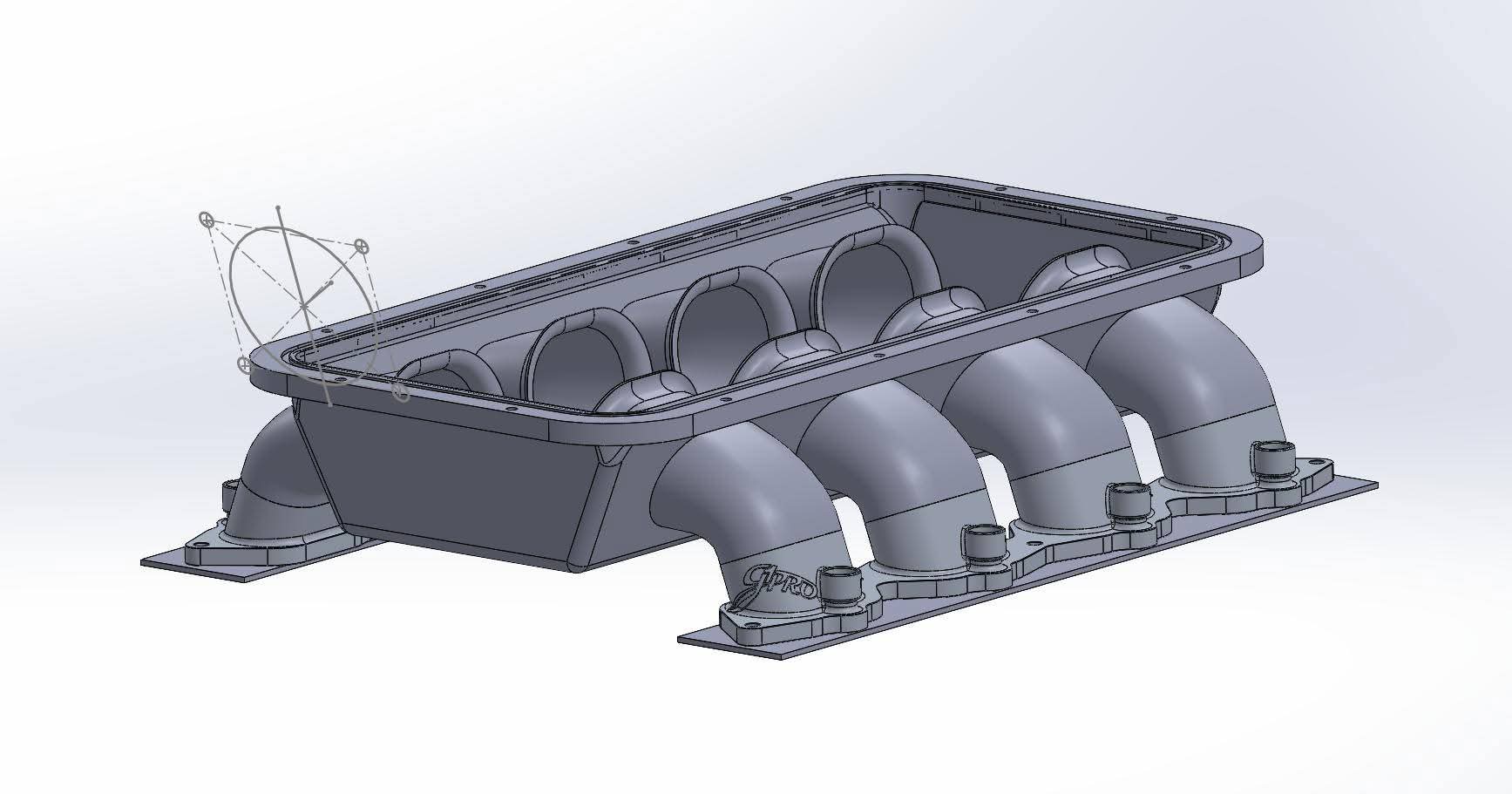

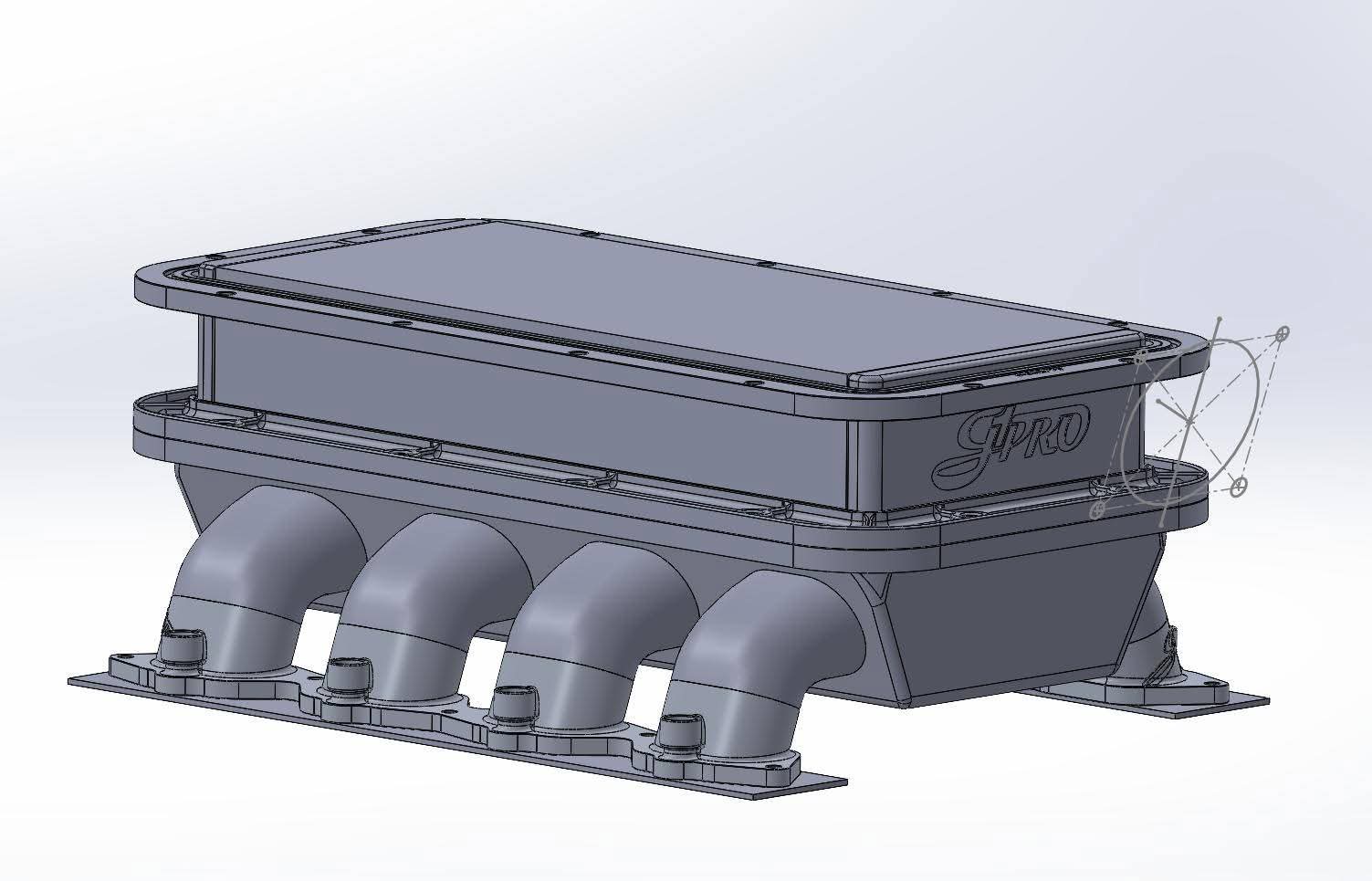

Coyote Printed Mid Ram – Lower Plenum Only

Holley High Ram Plenum Flange • Accepts All A2W Cores • Fuel Rails Included
Titanium Hardware Standard

This listing is for the lower plenum only — perfect for builders who already have a lid, throttle-body setup, or A2W core.
Designed around the Holley High Ram plenum flange, this fully aluminum metal-printed Mid Ram delivers elite airflow, high-boost strength, and OEM-friendly fitment.

This lower plenum is the foundation of the most advanced modular Coyote intake system available.

---

Key Features

• 100% Aluminum Metal-Printed Construction (DMLS)

Direct Metal Laser Sintering provides:

Extreme rigidity

No welding distortion

Precision geometry

High-temperature & high-boost stability

This is true motorsport-grade additive manufacturing.

---

• Holley High Ram Plenum Flange

Compatible with:

Holley High Ram lids

All G1Pro custom printed lids

Coyote / GT350 / Cobra Jet / GM / S650 dual-TB lids (lid dependent)



---

• Accepts All A2W Cores

Fully compatible with:

G1Pro Ultra Low 3” Triple-Pass Core

Tick Ultra Low Core

All Holley High Ram–pattern A2W intercooler cores

Custom printed/billet cores (contact for specs)

Designed to package A2W systems cleanly with OEM-like clearance.

---

• Fuel Rails Included

Your choice of:

8AN rails (Single Injected)

10AN rails (Dual Injected)

12AN rails available by request

Perfect injector targeting + high-flow internal geometry.

---

• Optimized Runner + Plenum Geometry

5-inch runners with 25% taper

G3-radius transitions (G1Pro exclusive)

4-inch lower plenum height from head surface

OEM Boss–like fitment when paired with ultra-low A2W hardware

No other manifold builder uses true G3 curvature — only G1Pro.

---

• OEM-Compatible Sealing

Works with factory Ford Coyote:

Boss 302 manifold-to-head O-ring gaskets (not included)

3mm plenum O-ring included

No special gaskets needed.

---

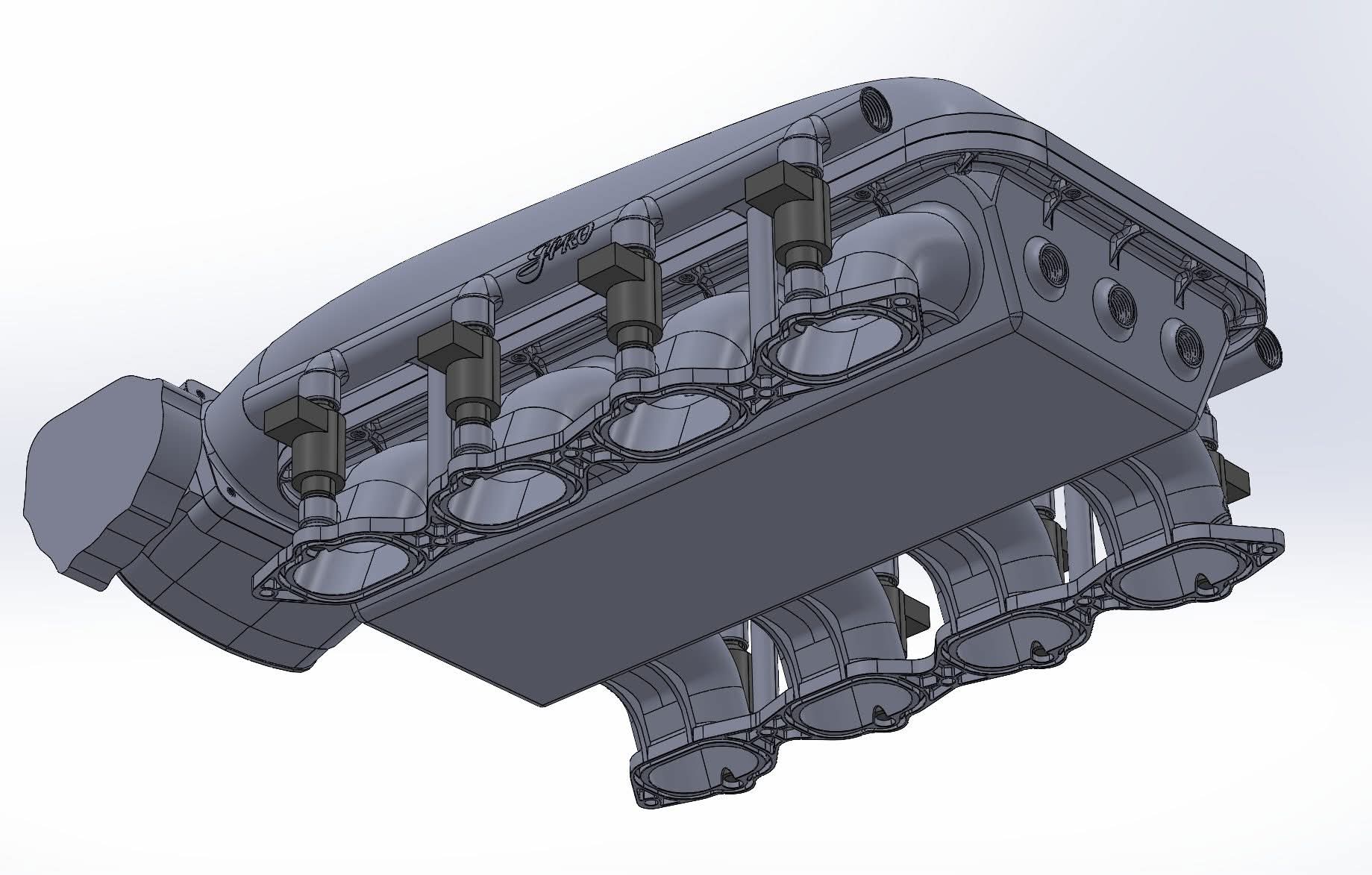

Integrated Ports

Rear: (3) × 3/8" NPT

Front: (3) × 1/8" NPT

Perfect for sensors, vacuum/boost reference, and auxiliary systems.

---

Pricing

• Lower Plenum Only (Single Injected):

$1,250 USD
(8AN rails + titanium hardware)

• Lower Plenum Only (Dual Injected):

$1,350 USD
(10AN rails + titanium hardware)

Wholesale pricing available for dealers and shops.

---

Included in the Box

Aluminum metal-printed Coyote Mid Ram Lower Plenum

Fuel rails (8AN or 10AN depending on version)

Full titanium hardware kit (ONLY the parts used on the lower):

Plenum bolts: 1/4-20 × 7/8” + washers

Manifold-to-head bolts + washers

Fuel rail stands + hardware

3mm plenum O-ring

O-rings & seals for lower section

Installation guide

Note:
Throttle body bolts are NOT included.
These are part of the lid package, not the lower plenum package.

---

Fitment

2011–2024 Ford 5.0L Coyote

S197 / S550 / S650

Fits all Holley High Ram–pattern lids

Compatible with all G1Pro printed lids & A2W cores



---

Lead Time

14–18 days from order to shipment.
Each lower is individually printed, machined, assembled, pressure-tested, and QC-verified.

---

Customization Options

Custom shop logos (MOQ required)

Titanium hardware standard

Custom runner length (free)

Custom throttle-body angle (lid dependent)



---

Build Your System

Pair this lower with your existing Holley lid — or upgrade to a G1Pro printed lid for maximum flow, strength, and packaging efficiency.

---

Ready to build the strongest printed Coyote intake foundation ever produced?
Add to Cart or contact us for full system builds & wholesale accounts.

---
