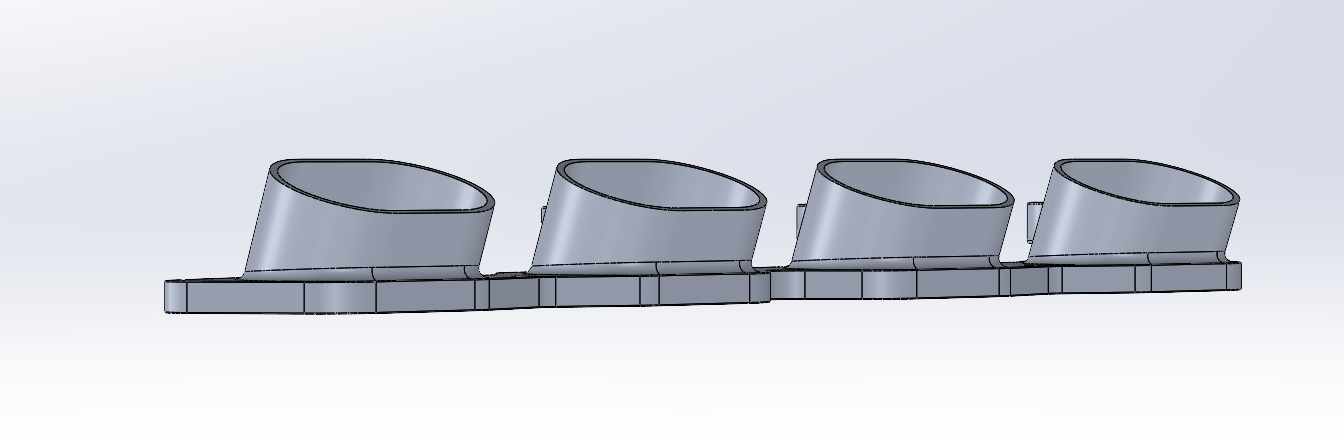

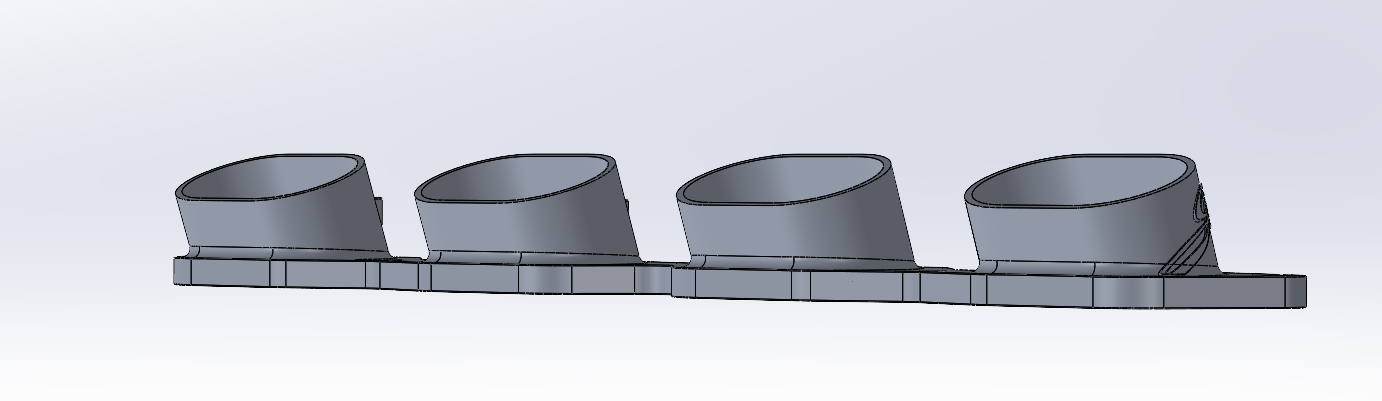

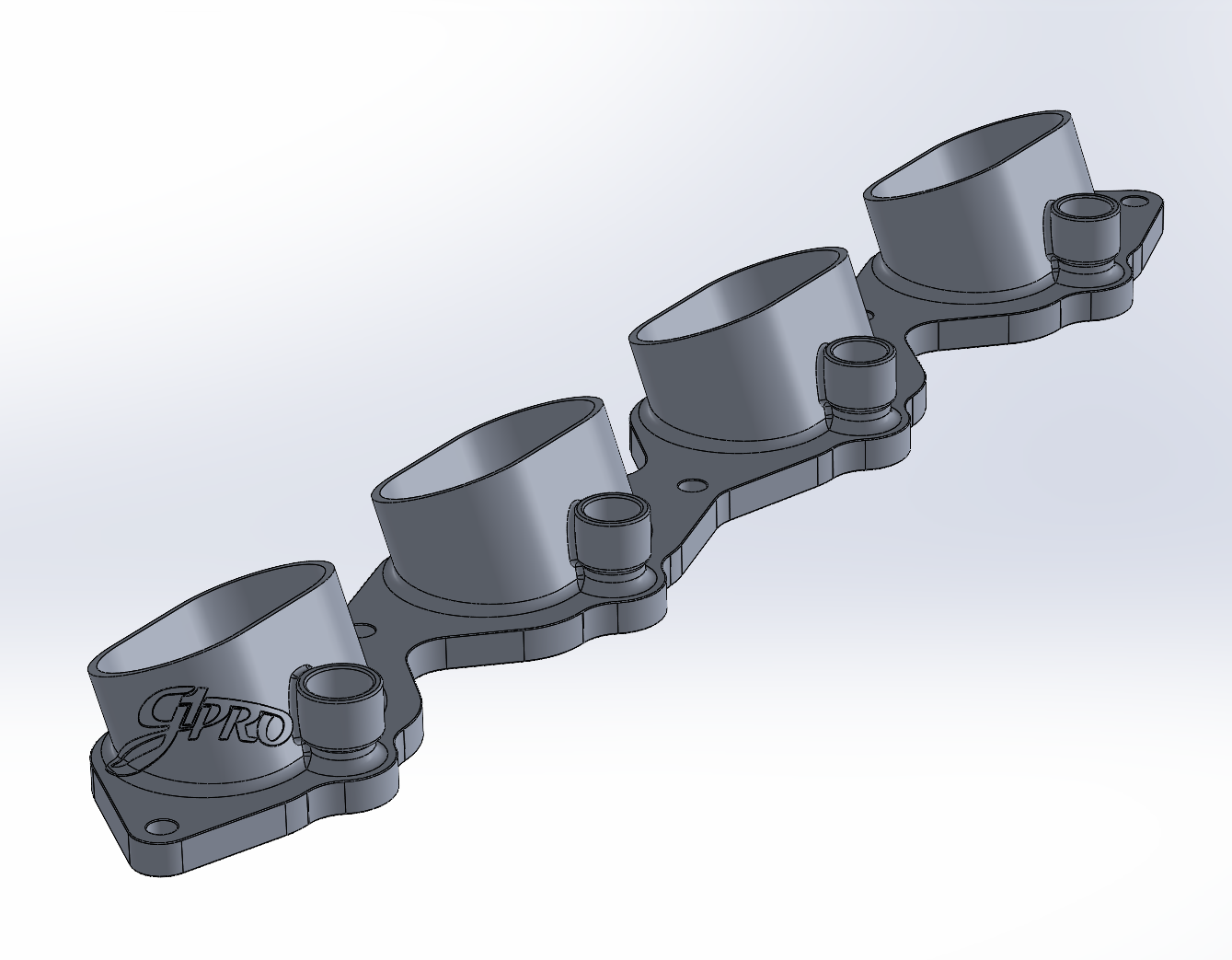

Coyote Intake Manifold Head Flange – 100% Aluminum 3D Printed

Coyote Intake Manifold Head Flange – 100% Aluminum 3D Printed

For Custom Fabricators & Builders

Build your own masterpiece.
This 3D printed aluminum Coyote intake manifold head flange is engineered for precision fabrication, lightweight strength, and flawless alignment.
Designed for both single-injector and dual-injector configurations, it gives fabricators complete freedom to build custom induction systems without the distortion or warping that comes with conventional flange welding.

Product Highlights

• 100% Aluminum Metal 3D Printed – ultra-light, high-strength, and dimensionally stable

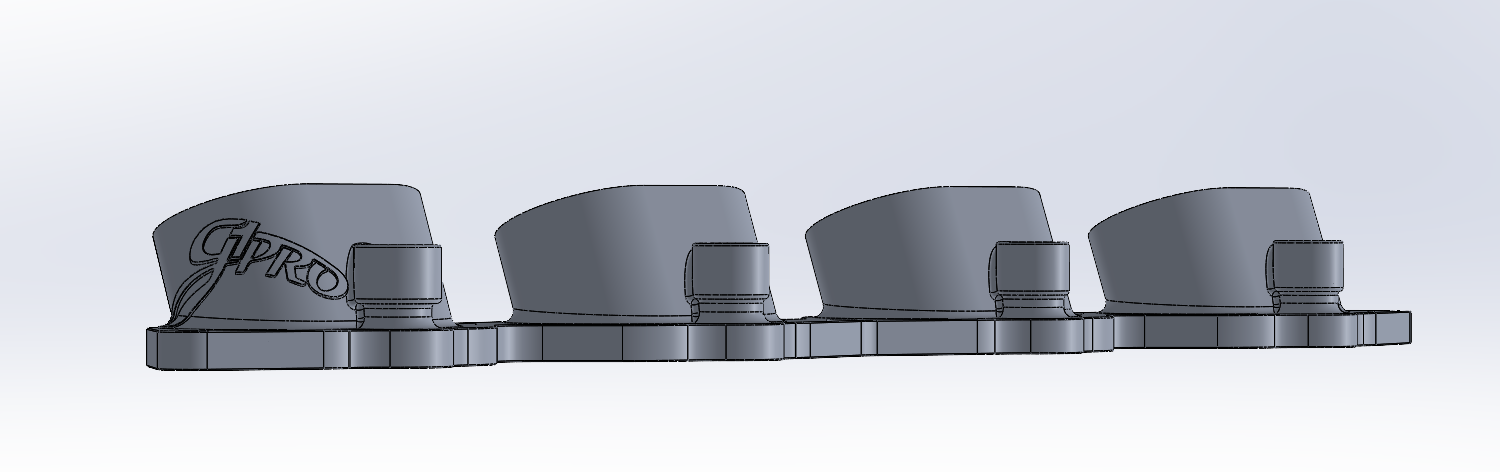

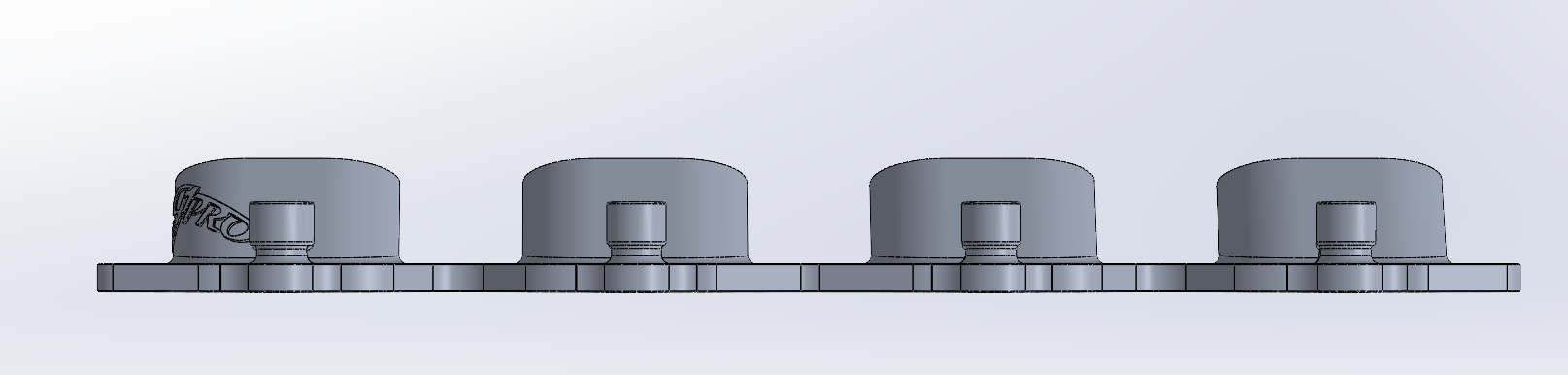

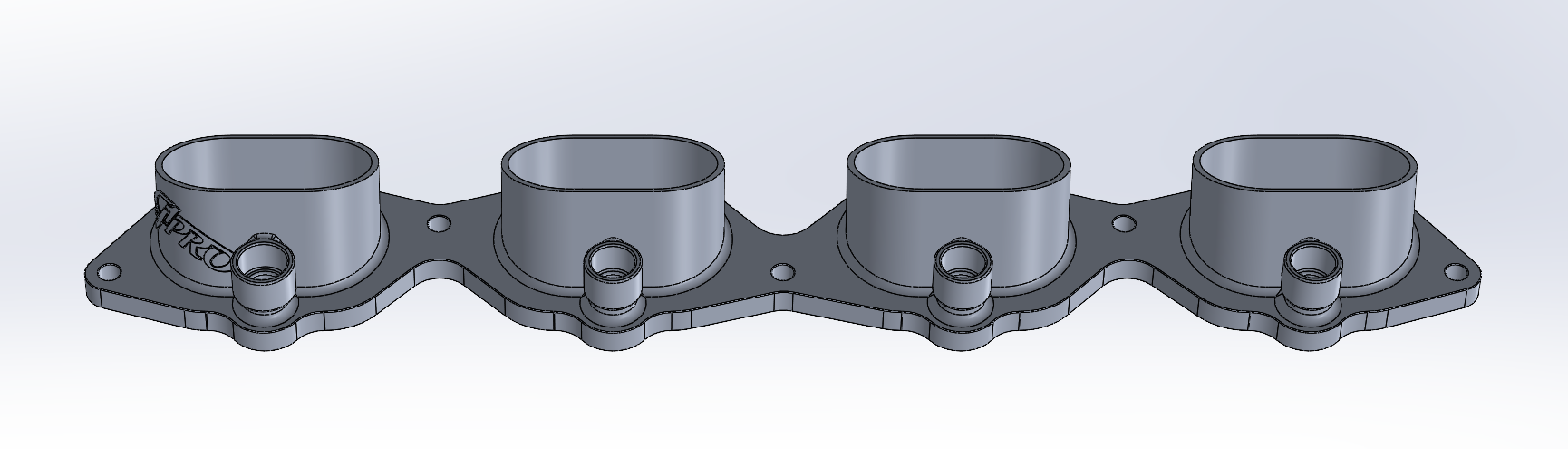

• Integrated Injector Bungs – available in single or dual configuration

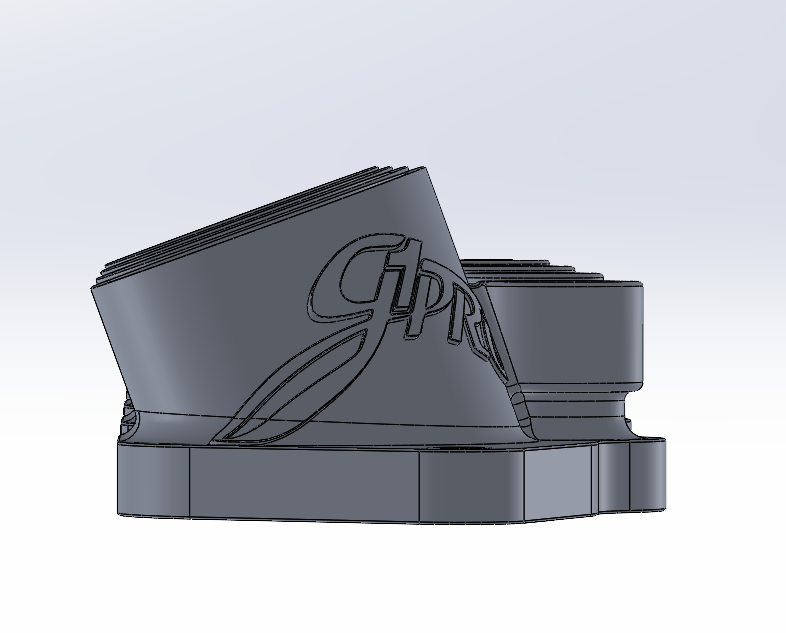

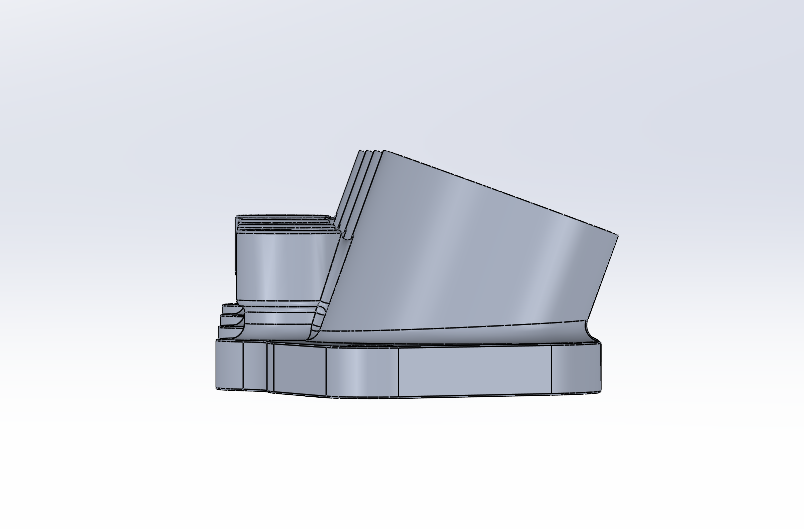

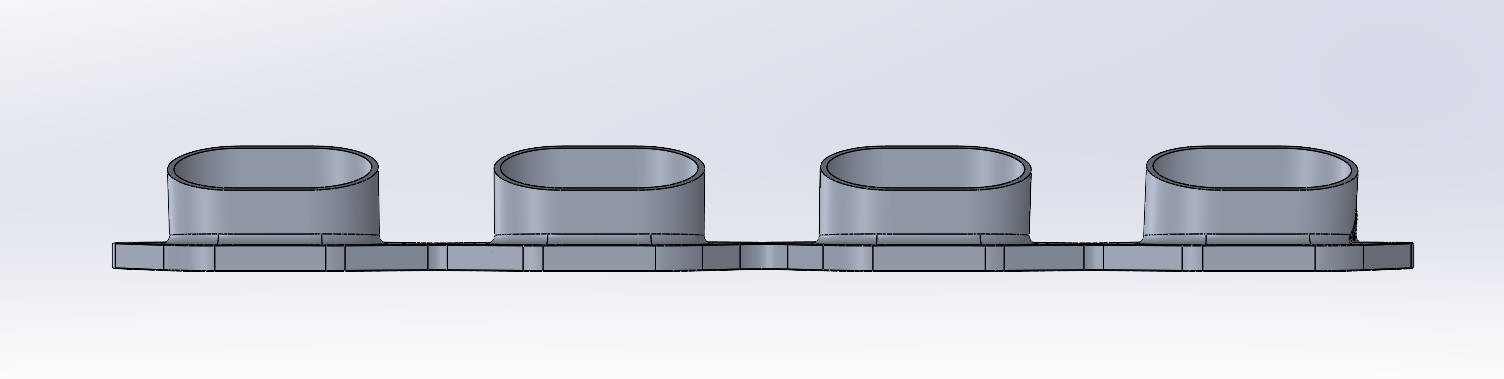

• Stub Runner Design – runners weld to short stub ends instead of directly to the flange, greatly reducing warping and weld distortion

• Optimized Internal Structure – engineered for strength-to-weight efficiency

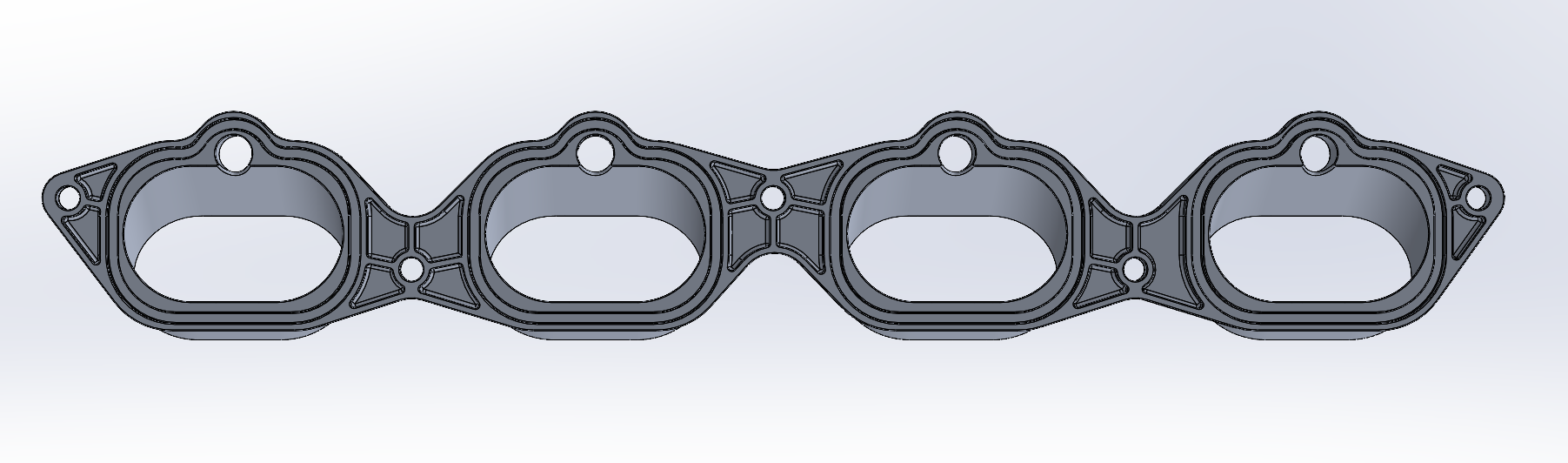

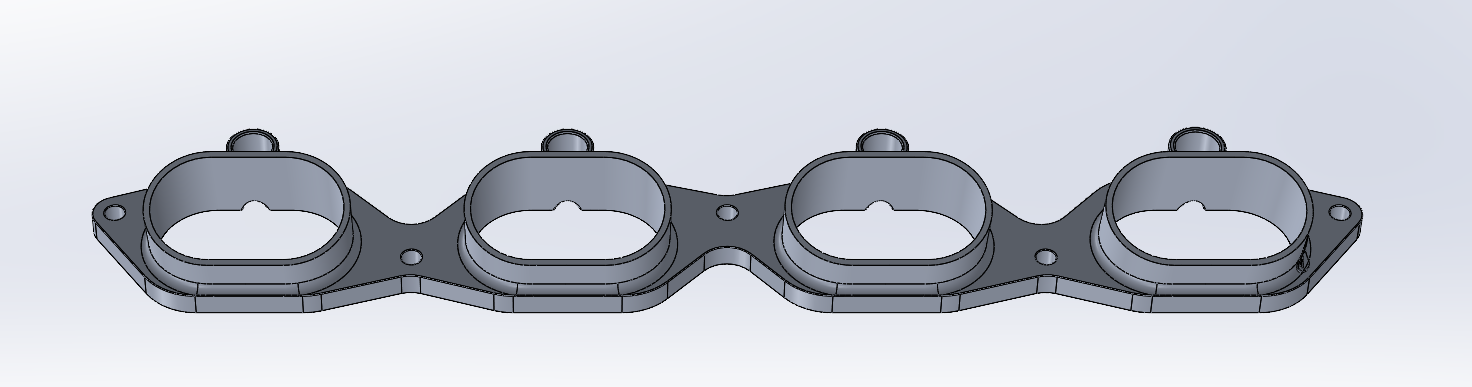

• 6.5 mm Precision Bolt Holes – ensures perfect alignment to the cylinder head

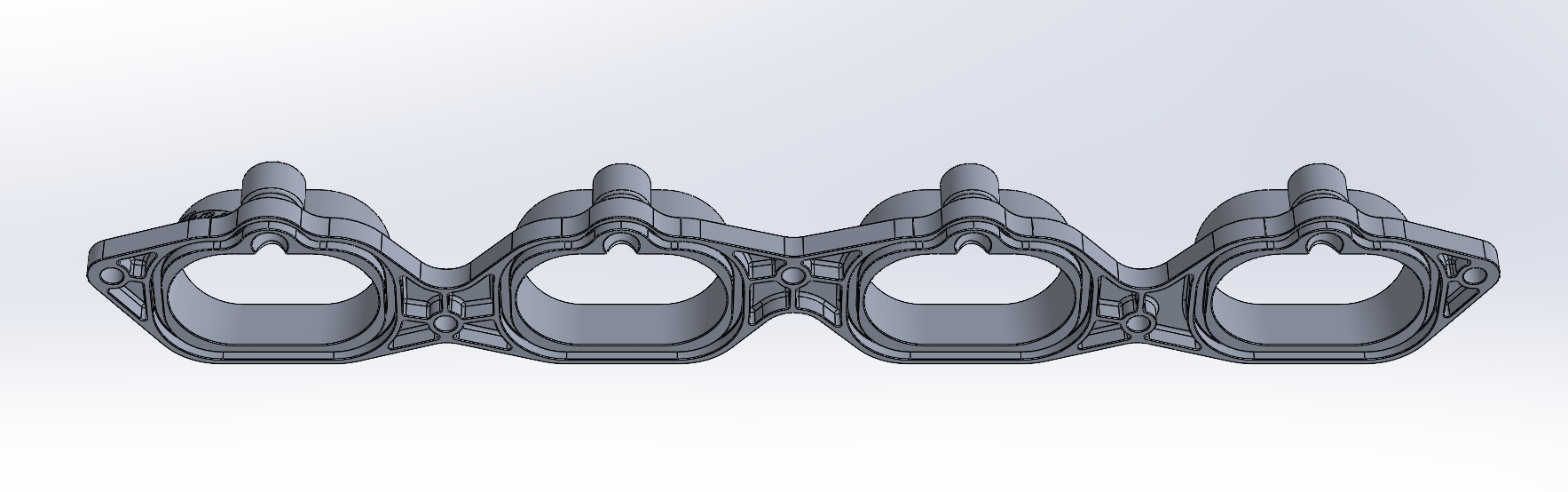

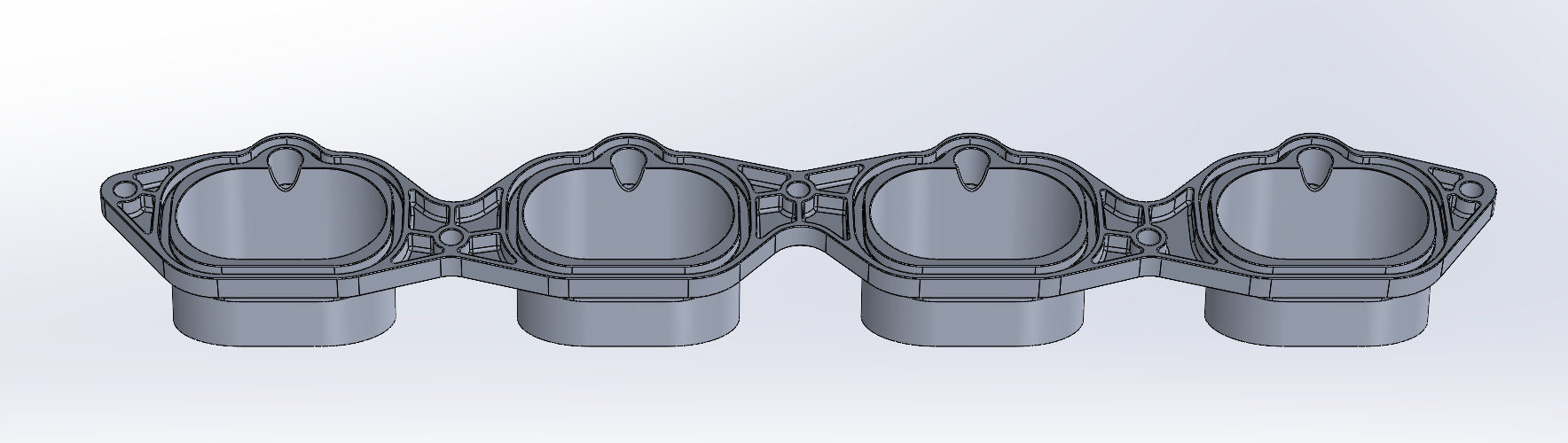

• Accepts OEM Boss-Style O-Ring Seals – reliable, leak-free interface

• Runner Ends Prepped and Ready to Weld – clean, fast fabrication setup

Available Configurations

Single-Injector Version

• Compatible with OEM Boss-style fuel rails or G1Pro printed fuel rails


• Fully integrated injector bungs, ready to assemble and weld

Dual-Injector Version

• Designed for high-horsepower or dual-fuel applications

• Set up for fabricators who prefer to build their own custom fuel rails

• Optionally supports G1Pro dual-injected -12 AN fuel rails (available separately)

• Integrated injector bungs positioned for optimal spray angle and clearance

Specifications

• Material: 100% Aluminum (metal 3D printed)

• Injector Compatibility: OEM / Bosch EV14 short-style

• Bolt Hole Size: 6.5 mm

• Seal Type: OEM Boss-Style O-Ring

• Finish: Raw aluminum as-printed, ready for polish, coating, or assembly

Fulfillment & Delivery

• Ships direct from our print facility

• Print time: 10 business days

• Shipping time: approximately 5 business days

• Typical delivery: 2–3 weeks from payment receipt

For pricing, custom requests, or bulk orders:
📧 Email: goertzllc@gmail.com
📩 DM on Instagram: @g1pro_llc

Precision starts at the flange.
Coyote power starts here.
