4-1 Merge Collector Jigs & Fixtures - Schedule 1.50 Pipe (3D Printing Files)

4-1 Merge Collector Jigs & Fixtures - Schedule 1.50 Pipe (3D Printing Files)

Price: $20.00 (per fixture) | $105.00 (Bulk Pack - All Fixtures)

Description:

Streamline your fabrication process with our 4-1 Merge Collector Jigs & Fixtures designed specifically for schedule 1.50 pipe. These high-precision jigs are available as 3D-printable files (STL format), providing you with the perfect tool to ensure accurate alignment and assembly of your 4-1 merge collectors. Whether you're a professional fabricator or a DIY enthusiast, these fixtures are essential for creating top-quality collectors with consistent results.

Each jig is tailored for a specific collector configuration, ensuring that you can create perfect 4-1 merge collectors every time. Available individually or as part of the Bulk Pack, which gives you access to all fixture designs for maximum flexibility.

Product Variants:

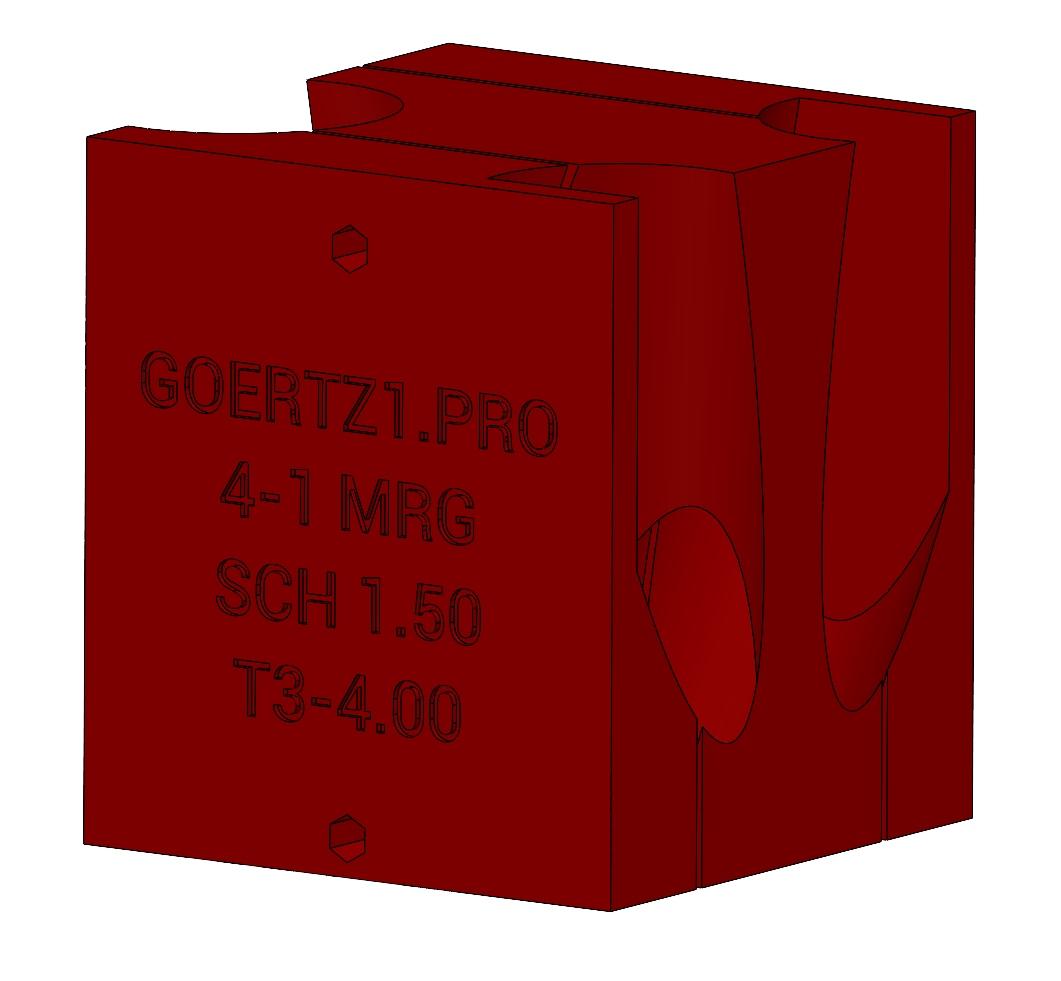

• 4-1MRG SCH150 T3-400
  Fixture for T3 flange collectors, designed for a 4.00" overall height.

• 4-1MRG SCH150 T4-400
  Fixture for T4 flange collectors, designed for a 4.00" overall height.

• 4-1MRG SCH150 T25-400
  Fixture for T25 flange collectors, designed for a 4.00" overall height.

• MRG4-1 SCH150 3TALL 2.00ROUND
  Fixture for a 3.00" tall collector with a 2.00" round exit.

• MRG4-1 SCH150 3TALL T25SQUARE
  Fixture for a 3.00" tall collector with a T25 square exit.

• MRG4-1 SCH150 4TALL 2.00ROUND
  Fixture for a 4.00" tall collector with a 2.00" round exit.

• MRG4-1 SCH150 4TALL 2.50ROUND
  Fixture for a 4.00" tall collector with a 2.50" round exit.

• MRG4-1 SCH150 4TALL 3.00ROUND
  Fixture for a 4.00" tall collector with a 3.00" round exit.

Bulk Pack:
For only $90.00, you can get access to all eight fixture designs in one convenient download, giving you everything you need to fabricate 4-1 merge collectors across multiple configurations.

What You Get:

• One Size Fixture: Your purchase grants access to one STL file of your selected collector size, ready for 3D printing. Each fixture is tailored to a specific configuration for accurate and precise assembly.

• Bulk Pack - All Fixtures: Gain access to all eight fixture designs for only $90.00, ensuring complete flexibility for your fabrication projects.

• 3D Printing Format: Files are provided in STL format, compatible with most 3D printers. Simply print the fixture using your preferred material, and you’re ready to fabricate your collectors.

Benefits of a 4-1 Merge Collector:

Using a 4-1 Merge Collector provides numerous performance and fabrication advantages, especially for high-performance exhaust systems and turbo manifolds:

1. Improved Exhaust Flow: The collector merges four exhaust pipes into one, reducing turbulence and promoting faster, more efficient evacuation of exhaust gases.

2. Increased Power and Torque: By optimizing exhaust flow and reducing back pressure, a 4-1 merge collector increases horsepower and torque, especially at higher RPMs.

3. Enhanced Scavenging: The design promotes scavenging, where the exhaust pulse from one cylinder helps draw exhaust gases from another, improving cylinder filling and combustion efficiency.

4. Tuned Exhaust Sound: The smoother transition of exhaust pulses creates a more aggressive and refined exhaust note, which is desirable for performance vehicles.

5. Better Heat Management: By merging the exhaust gases, heat is distributed more evenly, improving thermal efficiency and the longevity of exhaust components.

6. Boosted Turbo Performance: In turbocharged engines, 4-1 collectors improve spool time by promoting faster, more efficient gas flow, reducing turbo lag and improving throttle response.

7. Compact Design: Ideal for tight engine bays, 4-1 collectors offer compact yet high-flow solutions, perfect for space-limited setups.

8. Consistency in Fabrication: Using a jig ensures that every collector is made to exact specifications, minimizing errors and ensuring repeatability across multiple projects.

How It Works:

1. Choose Your Fixture or Bulk Pack: Select the specific jig for the collector size and flange you need, or choose the Bulk Pack to access all sizes at once.
2. Purchase & Download: Complete your purchase and instantly download the STL file for 3D printing.
3. 3D Print the Fixture: Print the jig using durable materials like PLA, ABS, or PETG for optimal use in the shop.
4. Fabricate Your Collector: Use the printed jig to accurately align the pipes and weld your 4-1 merge collectors with precision.

Perfect for:

• Custom Exhaust Builders: Achieve perfect collector alignment for turbo manifold or header fabrication.
• Performance Shops: Create repeatable, professional-quality merge collectors for high-performance builds.
• DIY Enthusiasts: Fabricate high-quality collectors at home using your 3D printer and our precision jigs.

Frequently Asked Questions (FAQ):

Q: What materials should I use for 3D printing the jigs?
A: We recommend using durable materials like PLA, ABS, or PETG to ensure the fixtures are long-lasting and can handle the fabrication process.

Q: Can I modify the STL files?
A: Yes, you can modify the files to suit your specific needs, but keep in mind that the jigs are designed for optimal performance as-is.

Q: Are these files suitable for commercial use?
A: The printed jigs can be used in commercial settings, but the STL files themselves are for personal use only and cannot be resold or redistributed.

Download your 4-1 Merge Collector Jig today and start fabricating with precision and ease! Choose individual fixtures for $20.00 or save with the Bulk Pack for only $105.00 and access all eight fixtures in one purchase.
