4-1 Merge Collector Jigs & Fixtures - Schedule 1.25 Pipe (3D Printing Files)

4-1 Merge Collector Jigs & Fixtures - Schedule 1.25 Pipe (3D Printing Files)

Price:
$20.00 (per fixture) | $75.00 (Bulk Pack - All Fixtures)

Description:

Streamline your fabrication process with our 4-1 Merge Collector Jigs & Fixtures, designed specifically for schedule 1.25 pipe. These high-precision jigs are available as 3D-printable files (STL format), providing you with the perfect tool to ensure accurate alignment and assembly of your 4-1 merge collectors. Whether you're a professional fabricator or a DIY enthusiast, these fixtures are essential for creating top-quality collectors with consistent results.

Each jig is tailored for a specific collector configuration, ensuring that you can create perfect 4-1 merge collectors every time. Available individually or as part of the Bulk Pack, which gives you access to all fixture designs for maximum flexibility.

Product Variants:

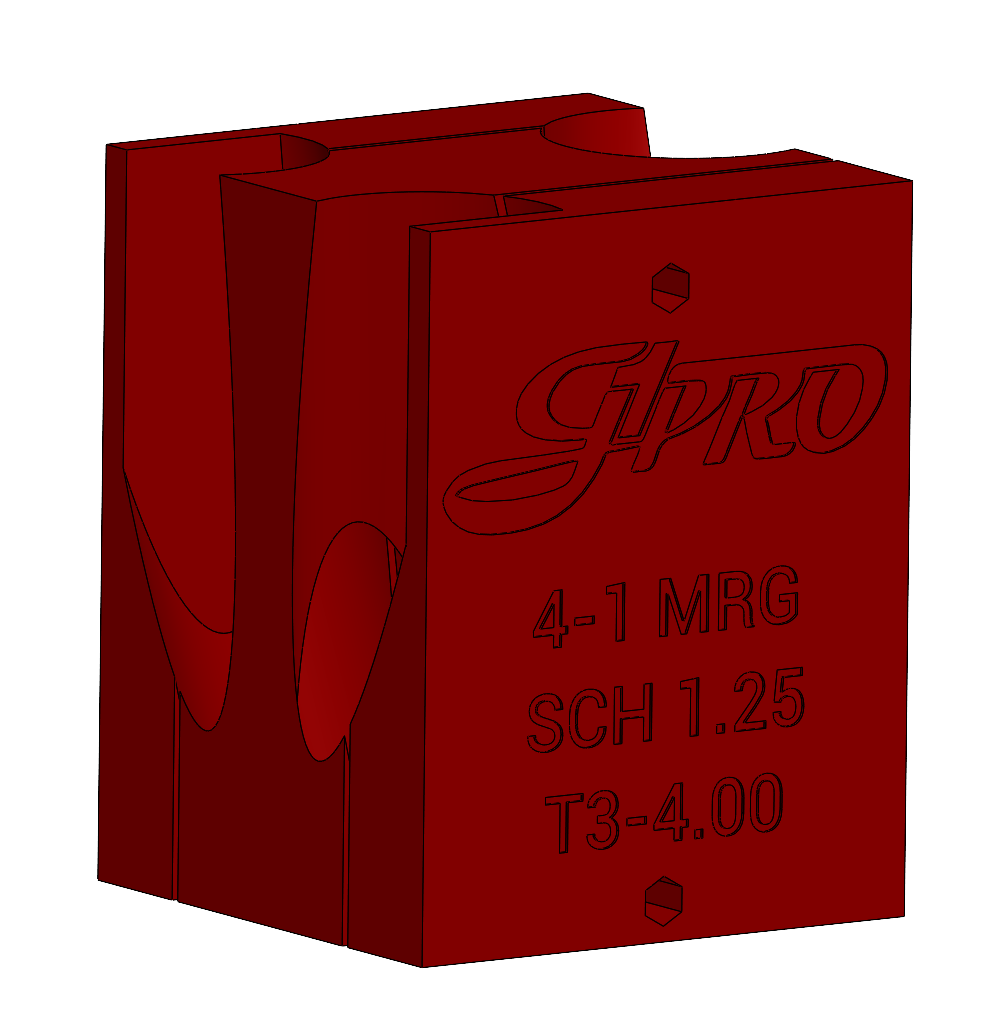

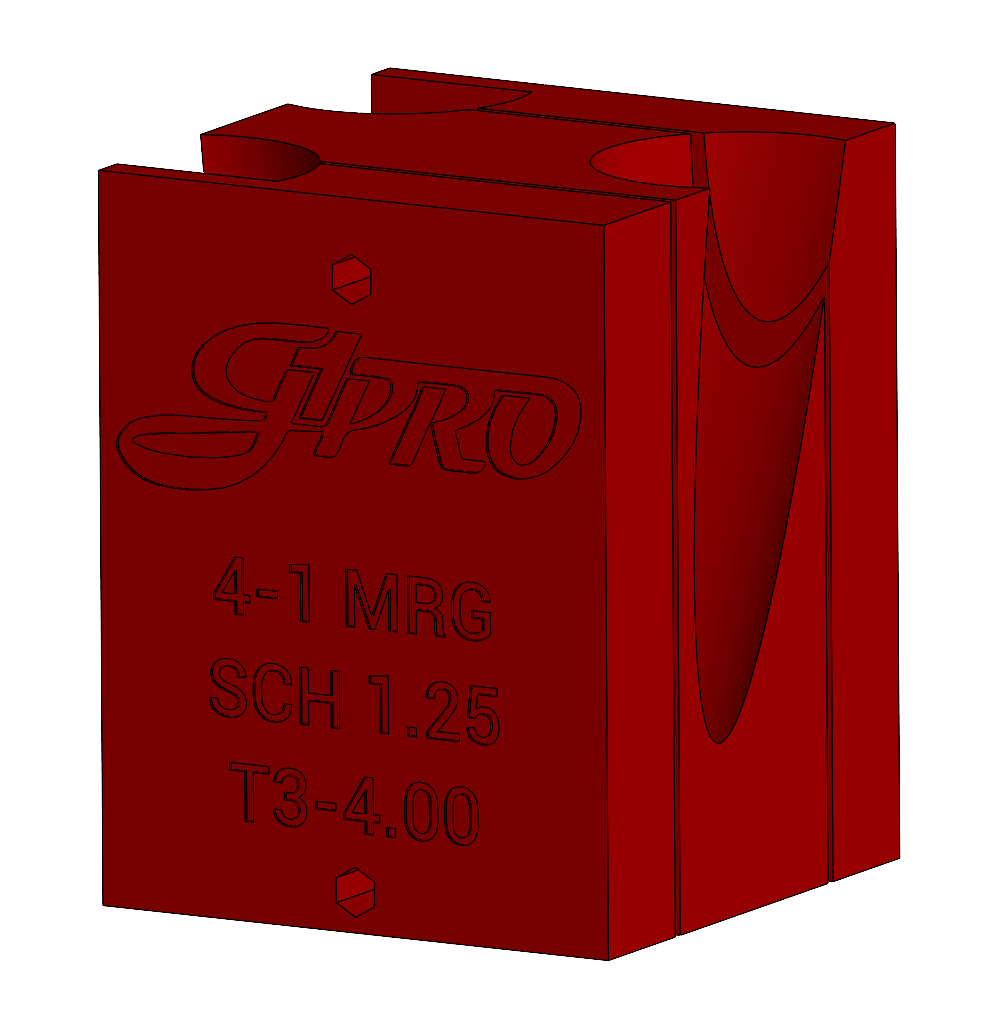

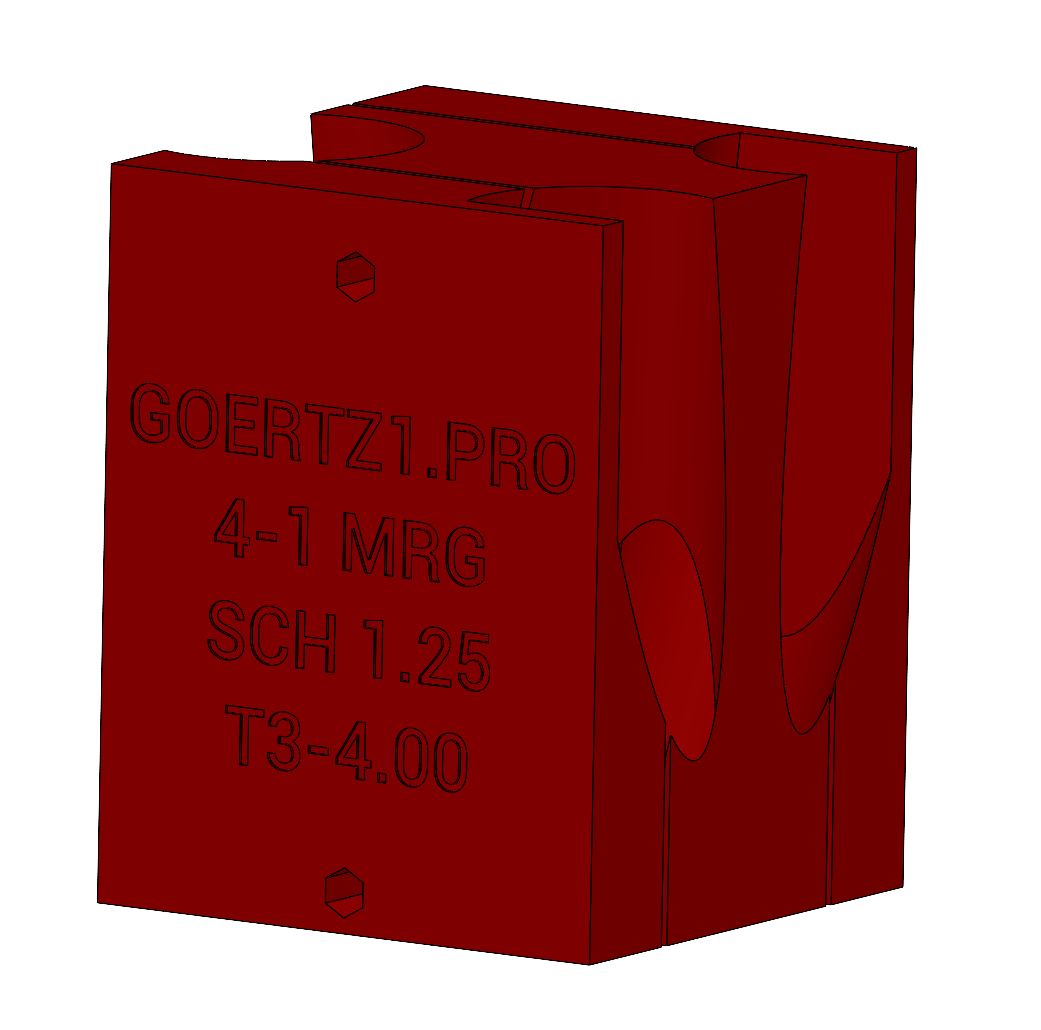

• 4-1MRG SCH125 T3-400
  Fixture for T3 flange collectors, designed for a 4.00" overall height.

• 4-1MRG SCH125 T4-400
  Fixture for T4 flange collectors, designed for a 4.00" overall height.

• 4-1MRG SCH125 T25-400
  Fixture for T25 flange collectors, designed for a 4.00" overall height.

• MRG4-1 SCH125 3TALL 2.00ROUND
  Fixture for a 3.00" tall collector with a 2.00" round exit.

• MRG4-1 SCH125 3TALL 3.00ROUND
  Fixture for a 3.00" tall collector with a 3.00" round exit.

• MRG4-1 SCH125 3TALL T25SQUARE
  Fixture for a 3.00" tall collector with a T25 square exit.

• 4-1MRG SCH125 Bulk
  Access all fixtures in one convenient bulk package for $75.00.

What You Get:

• One Size Fixture:
  Your purchase grants access to one STL file of your selected collector size, ready for 3D printing. Each fixture is tailored to a specific configuration for accurate and precise assembly.

• Bulk Pack - All Fixtures:
  Gain access to all seven fixture designs for only $75.00, ensuring complete flexibility for your fabrication projects.

• 3D Printing Format:
  Files are provided in STL format, compatible with most 3D printers. Simply print the fixture using your preferred material, and you’re ready to fabricate your collectors.

Benefits of a 4-1 Merge Collector:

Using a 4-1 Merge Collector provides numerous performance and fabrication advantages, especially for high-performance exhaust systems and turbo manifolds:

• Improved Exhaust Flow:
  The collector merges four exhaust pipes into one, reducing turbulence and promoting faster, more efficient evacuation of exhaust gases.

• Increased Power and Torque:
  By optimizing exhaust flow and reducing back pressure, a 4-1 merge collector increases horsepower and torque, especially at higher RPMs.

• Enhanced Scavenging:
  The design promotes scavenging, where the exhaust pulse from one cylinder helps draw exhaust gases from another, improving cylinder filling and combustion efficiency.

• Tuned Exhaust Sound:
  The smoother transition of exhaust pulses creates a more aggressive and refined exhaust note, which is desirable for performance vehicles.

• Better Heat Management:
  By merging the exhaust gases, heat is distributed more evenly, improving thermal efficiency and the longevity of exhaust components.

• Boosted Turbo Performance:
  In turbocharged engines, 4-1 collectors improve spool time by promoting faster, more efficient gas flow, reducing turbo lag and improving throttle response.

• Compact Design:
  Ideal for tight engine bays, 4-1 collectors offer compact yet high-flow solutions, perfect for space-limited setups.

• Consistency in Fabrication:
  Using a jig ensures that every collector is made to exact specifications, minimizing errors and ensuring repeatability across multiple projects.

How It Works:

1. Choose Your Fixture or Bulk Pack:
   Select the specific jig for the collector size and flange you need, or choose the Bulk Pack to access all sizes at once.

2. Purchase & Download:
   Complete your purchase and instantly download the STL file for 3D printing.

3. 3D Print the Fixture:
   Print the jig using durable materials like PLA, ABS, or PETG for optimal use in the shop.

4. Fabricate Your Collector:
   Use the printed jig to accurately align the pipes and weld your 4-1 merge collectors with precision.

Perfect for:

• Custom Exhaust Builders:
  Achieve perfect collector alignment for turbo manifold or header fabrication.

• Performance Shops:
  Create repeatable, professional-quality merge collectors for high-performance builds.

• DIY Enthusiasts:
  Fabricate high-quality collectors at home using your 3D printer and our precision jigs.

Frequently Asked Questions (FAQ):

• Q: What materials should I use for 3D printing the jigs?
  A: We recommend using durable materials like PLA, ABS, or PETG to ensure the fixtures are long-lasting and can handle the fabrication process.

• Q: Can I modify the STL files?
  A: Yes, you can modify the files to suit your specific needs, but keep in mind that the jigs are designed for optimal performance as-is.

• Q: Are these files suitable for commercial use?
  A: The printed jigs can be used in commercial settings, but the STL files themselves are for personal use only and cannot be resold or redistributed.

Download your 4-1 Merge Collector Jig today and start fabricating with precision and ease!
Choose individual fixtures for $20.00 each or save with the Bulk Pack for only $75.00 and access all seven fixtures in one purchase.
